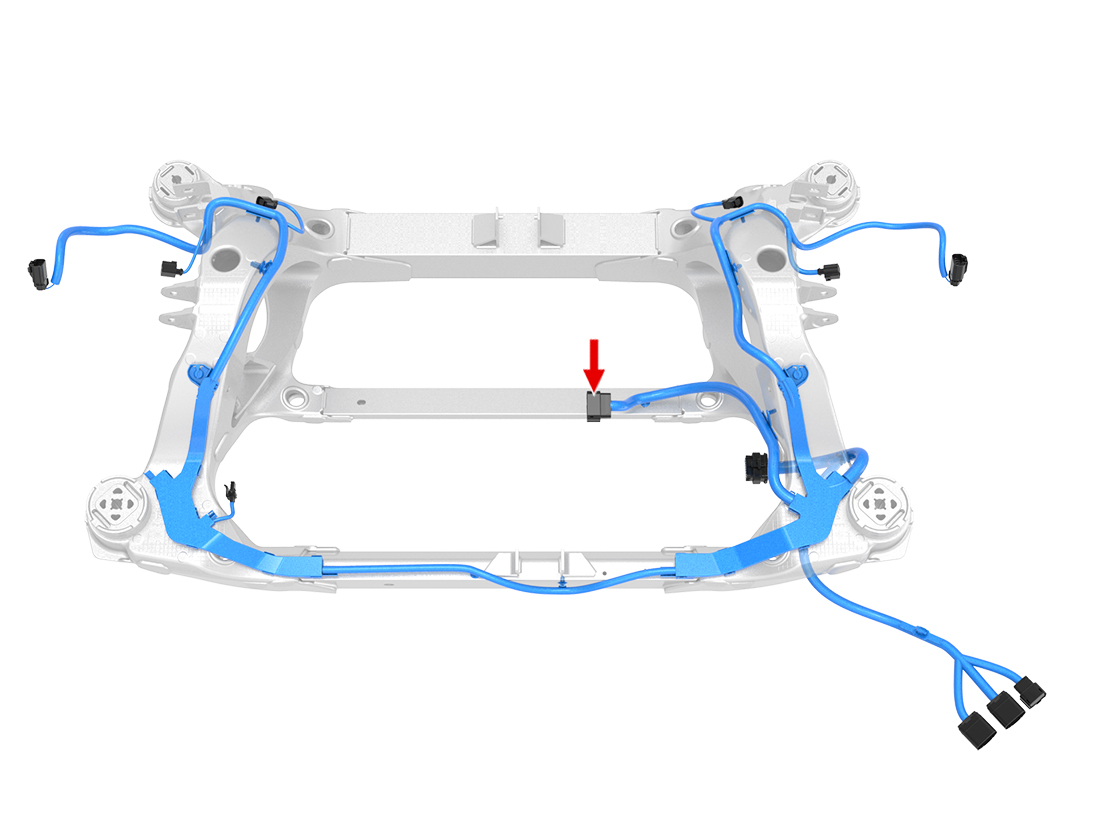

Connector Detail: MOLEX 33472-2007
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.5 | AU | X932F-11 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 2 | RD/WH | 0.5 | AU | X932F-1 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 3 | RD/YE | 0.5 | AU | X931F-5 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 4 | GY | 0.5 | AU | X931F-3 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 5 | OG | 0.5 | AU | X931F-2 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 6 | BK/VT | 0.5 | AU | X931F-11 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 7 | GN | 0.5 | AU | X931F-4 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 10 | RD/BK | 0.75 | AU | X931F-1 | MOLEX 33001-3004 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 11 | YE | 0.5 | AU | X931F-6 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 12 | BU | 0.5 | AU | X931F-10 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 13 | RD/BU | 0.75 | AU | X931F-8 | MOLEX 33001-3004 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 14 | BU/WH | 0.5 | AU | X931F-9 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 17 | WH | 0.5 | AU | X931F-13 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 18 | VT/WH | 0.75 | AU | X931F-14 | MOLEX 33001-3004 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 19 | BK | 0.75 | AU | X931F-7 | MOLEX 33001-3004 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 20 | GN/WH | 0.5 | AU | X931F-12 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.5 | AU | X932F-11 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 2 | RD/WH | 0.5 | AU | X932F-1 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 3 | RD/YE | 0.5 | AU | X931F-5 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 4 | GY | 0.5 | AU | X931F-3 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 5 | OG | 0.5 | AU | X931F-2 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 6 | BK/VT | 0.5 | AU | X931F-11 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 7 | GN | 0.5 | AU | X931F-4 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 10 | RD/BK | 0.75 | AU | X931F-1 | MOLEX 33001-3004 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 11 | YE | 0.5 | AU | X931F-6 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 12 | BU | 0.5 | AU | X931F-10 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 13 | RD/BU | 0.75 | AU | X931F-8 | MOLEX 33001-3004 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 14 | BU/WH | 0.5 | AU | X931F-9 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 17 | WH | 0.5 | AU | X931F-13 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 18 | VT/WH | 0.75 | AU | X931F-14 | MOLEX 33001-3004 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 19 | BK | 0.75 | AU | X931F-7 | MOLEX 33001-3004 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
| 20 | GN/WH | 0.5 | AU | X931F-12 | MOLEX 33001-3005 | TESLA MAT-120-240 | 1108363-00-C | 1116485-00-A |
