X260 - s-rhd-sop11

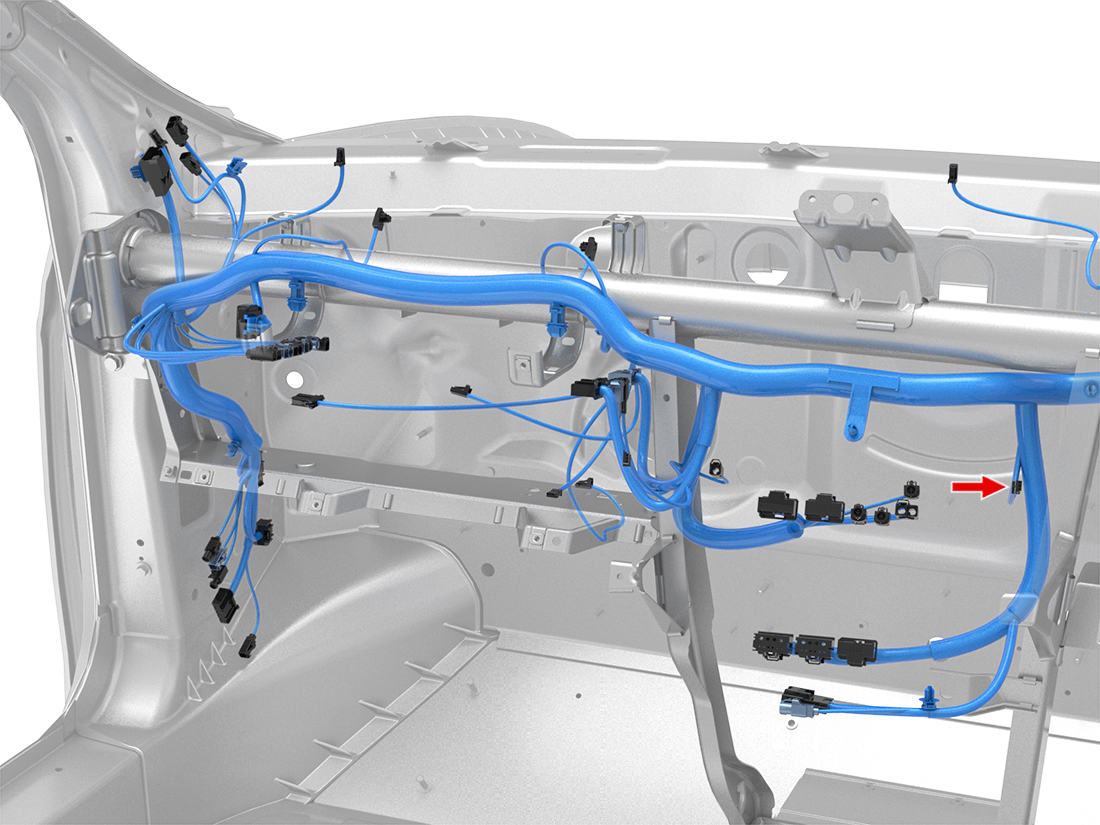

Location:
Location:
Connector Detail: AMP 1-1718346-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/BU | 0.35 | SN | X948F-13 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | RD/GN | 0.35 | SN | X948F-14 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | BK | 0.35 | SN | Z52-GDD10-L | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/BU | 0.35 | SN | X948F-13 | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | RD/GN | 0.35 | SN | X948F-14 | AMP 5-928999-1 | 1099455-00-B | ||
| 3 | BK | 0.35 | SN | Z52-GDD10-R | AMP 5-928999-1 | 1099455-00-B |
