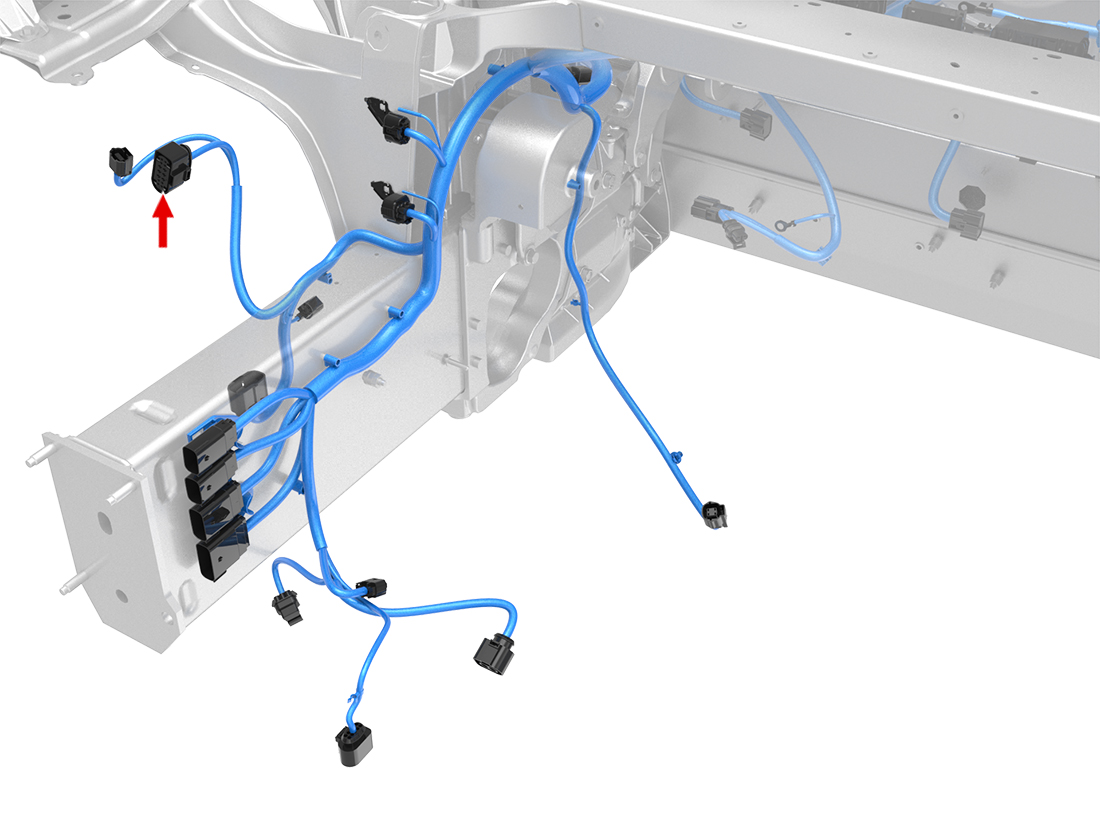

Connector Detail: AMP 1719105-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/VT | 0.35 | SN | X953F-5 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 4 | GN | 0.35 | SN | X020-22 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 6 | RD/GY | 1 | SN | X026-4 | AMP 964286-2 | AMP 963294-1 | 1099469-00-B | |
| 7 | VT | 0.35 | SN | X020-8 | AMP 964282-2 | AMP 963294-1 | 1099469-00-B | |
| 8 | BK | 1 | SN | Z92-GDB06-L | AMP 964286-2 | AMP 963294-1 | 1099469-00-B | |
| 9 | BK | 1 | SN | Z92-GDB06-L | AMP 964286-2 | AMP 963294-1 | 1099469-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/VT | 0.35 | SN | X953F-5 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 4 | GN | 0.35 | SN | X020-22 | AMP 969005-2 | AMP 964971-1 | 1099471-00-B | |
| 6 | RD/GY | 1 | SN | X026-4 | AMP 964286-2 | AMP 963294-1 | 1099469-00-B | |
| 7 | VT | 0.35 | SN | X020-8 | AMP 964282-2 | AMP 963294-1 | 1099469-00-B | |
| 8 | BK | 1 | SN | Z92-GDB06-R | AMP 964286-2 | AMP 963294-1 | 1099469-00-B | |
| 9 | BK | 1 | SN | Z92-GDB06-R | AMP 964286-2 | AMP 963294-1 | 1099469-00-B | |
