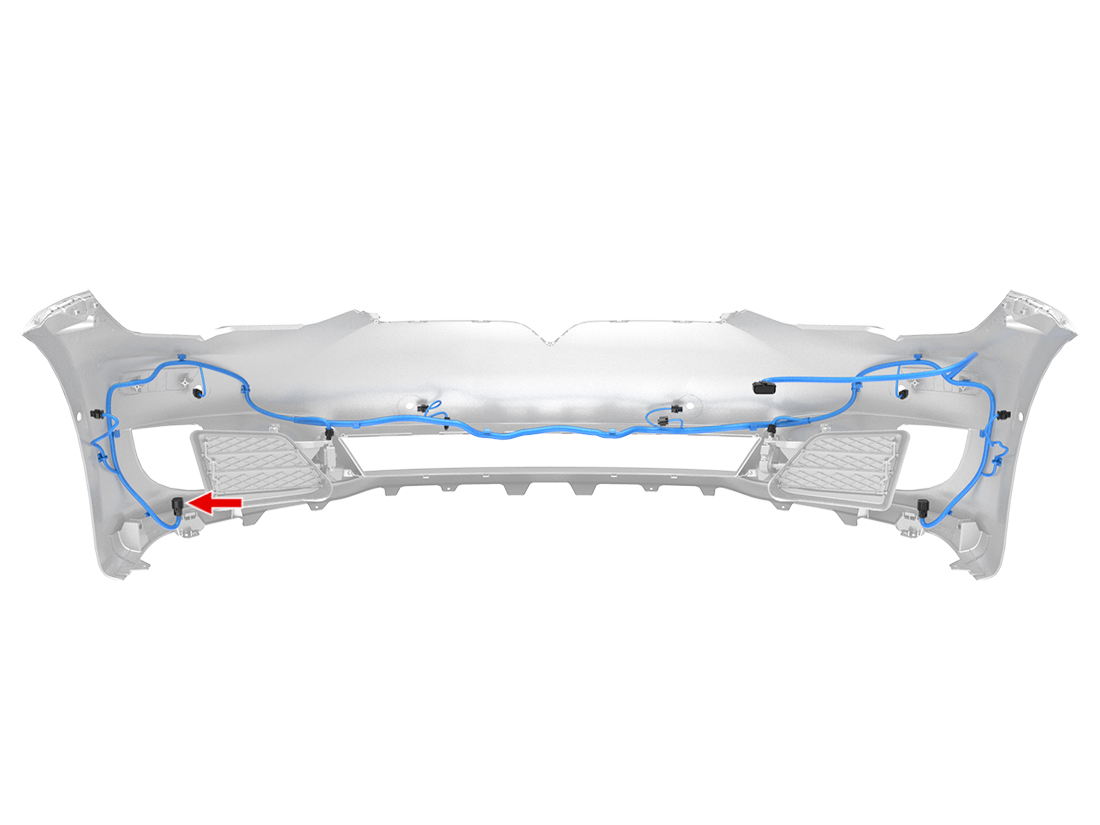

Connector Detail: MOLEX 33472-0601
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | BU | 0.35 | SN | X964F-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | GN/WH | 0.35 | SN | X964F-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | YE | 0.35 | SN | X964F-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | BK | 0.5 | SN | Z45-+GDA07-L | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | BU | 0.35 | SN | X964F-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | GN/WH | 0.35 | SN | X964F-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | YE | 0.35 | SN | X964F-3 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | BK | 0.5 | SN | Z45-+GDA07-L | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
