X269 - s-rhd-sop11

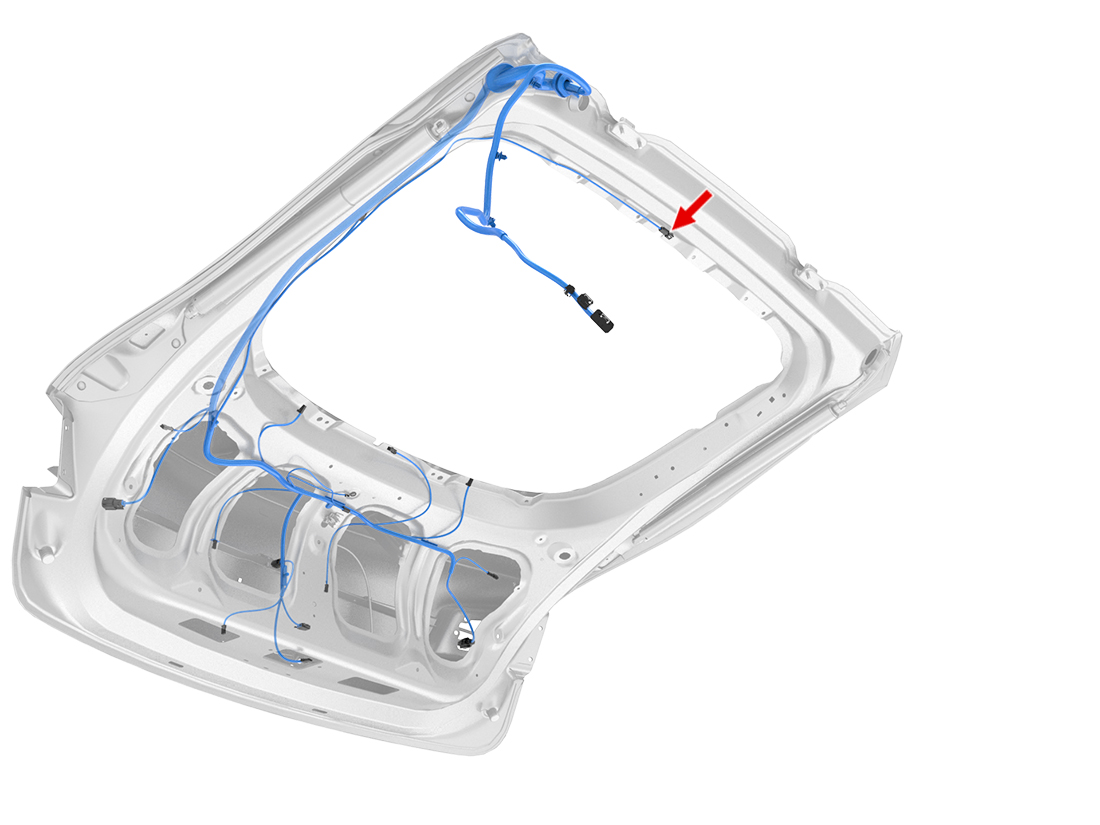

Location:
Connector Detail: DELPHI 12059252
Color: Red
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | WH/BK | 0.5 | SN | X921F-11 | DELPHI 12059894 | 1099473-00-A | ||
| B | BK | 0.5 | SN | Z46-GDL01-R | DELPHI 12059894 | 1099473-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| A | WH/BK | 0.5 | SN | X921F-11 | DELPHI 12059894 | 1099473-00-A | ||
| B | BK | 0.5 | SN | Z46-GDL01-R | DELPHI 12059894 | 1099473-00-A |
