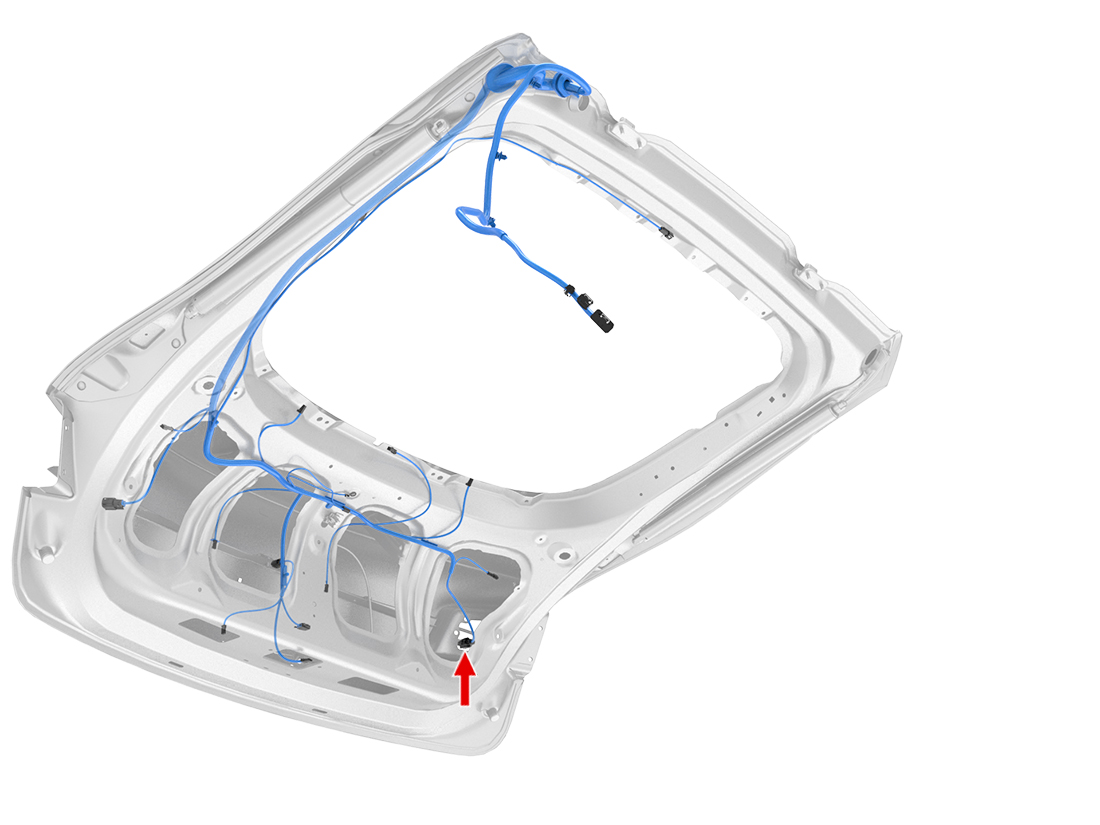

Connector Detail: MOLEX 33472-4001
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GY | 0.5 | SN | X921F-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | RD/BK | 0.5 | SN | X921F-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | BK | 0.5 | SN | Z46-GDL01-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GY | 0.5 | SN | X921F-5 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 3 | RD/BK | 0.5 | SN | X921F-6 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 4 | BK | 0.5 | SN | Z46-GDL01-R | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
