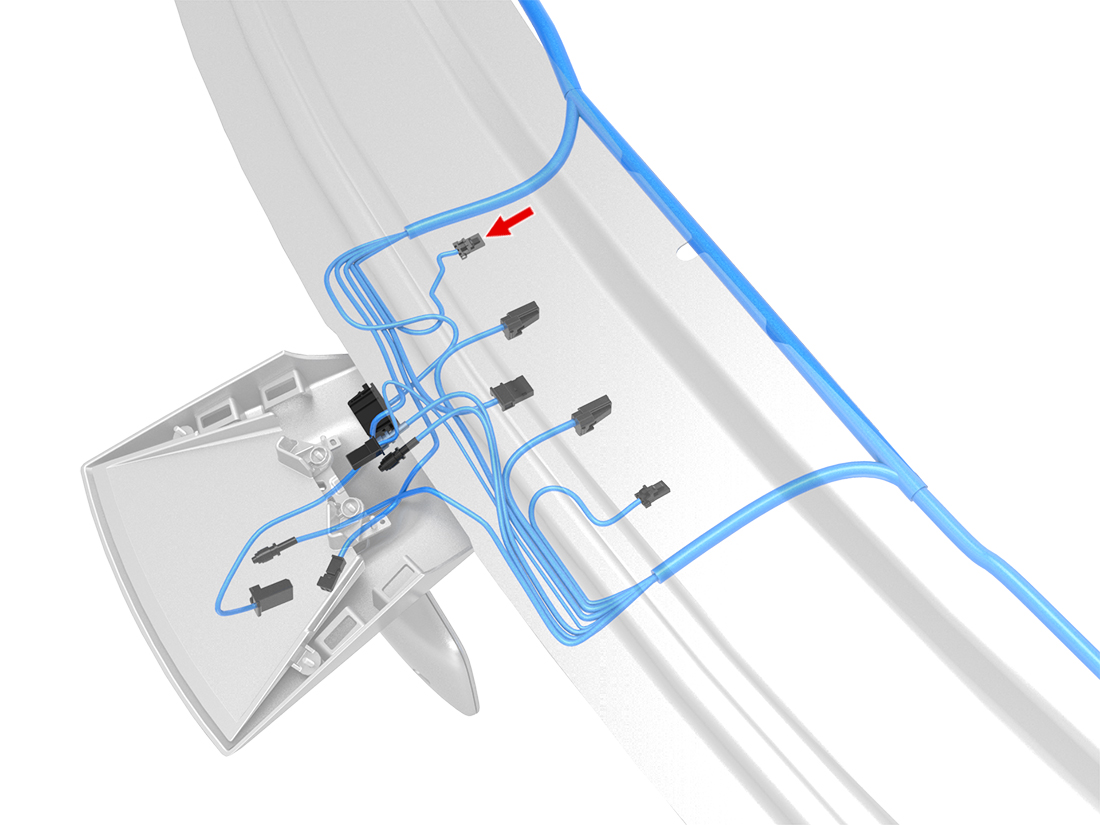

Connector Detail: MOLEX 50-57-9703
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BK | 0.35 | SN | X967F-15 | MOLEX 16-02-0086 | | 1099506-00-A | |
| 2 | BK | 0.35 | SN | Z62-+GDC12-R | MOLEX 16-02-0086 | | 1099506-00-A | |
| 3 | BU | 0.35 | SN | X967F-14 | MOLEX 16-02-0086 | | 1099506-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BK | 0.35 | SN | X967F-15 | MOLEX 16-02-0086 | | 1099506-00-A | |
| 2 | BK | 0.35 | SN | Z62-+GDC12-R | MOLEX 16-02-0086 | | 1099506-00-A | |
| 3 | BU | 0.35 | SN | X967F-14 | MOLEX 16-02-0086 | | 1099506-00-A | |
