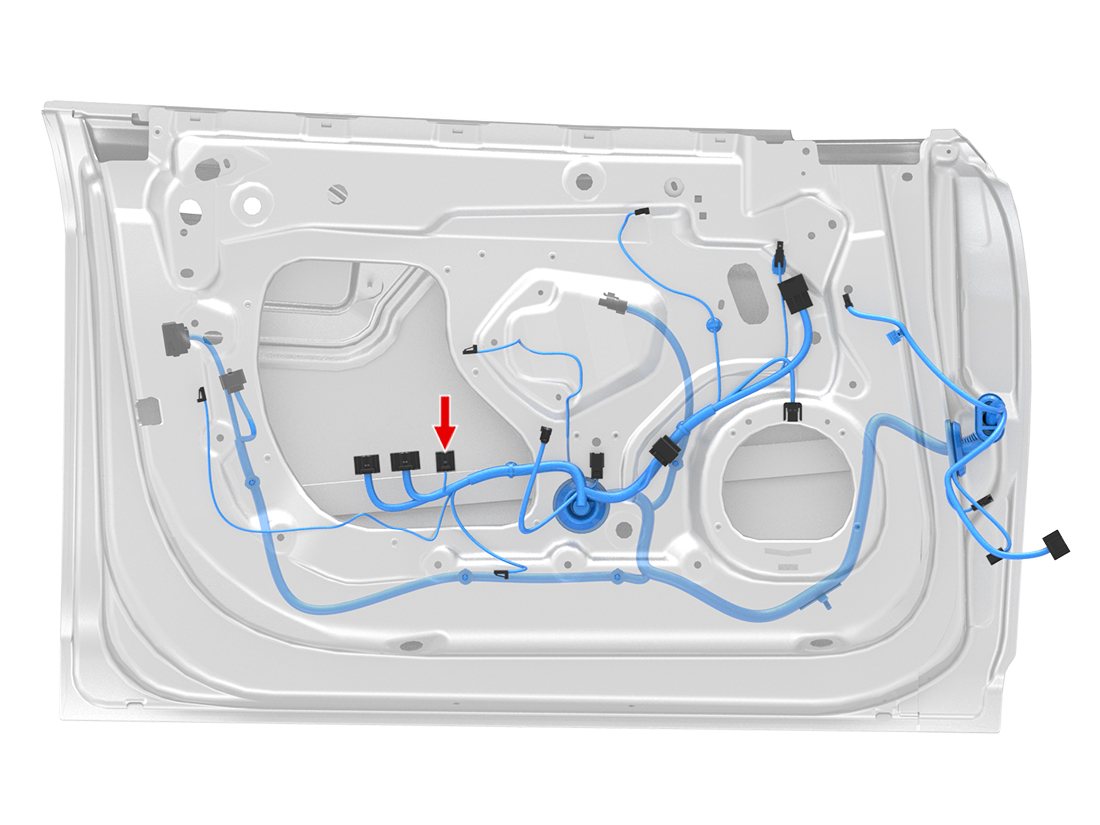

Connector Detail: MOLEX 31372-1000
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE/WH | 0.35 | SN | X943F-3 | MOLEX 33012-3003 | | 1099515-00-A | 1116485-00-A |
| 7 | RD | 0.5 | SN | Z78-PRM06-R | AMP 1326030-2 | | 1099432-00-A | |
| 10 | BK | 0.5 | SN | Z36-GDD01-L | AMP 1326030-2 | | 1099432-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE/WH | 0.35 | SN | X943F-3 | MOLEX 33012-3003 | | 1099515-00-A | 1116485-00-A |
| 7 | RD | 0.5 | SN | Z78-PRM06-R | AMP 1326030-2 | | 1099432-00-A | |
| 10 | BK | 0.5 | SN | Z36-GDD01-L | AMP 1326030-2 | | 1099432-00-A | |
