X307 - s-rhd-sop11

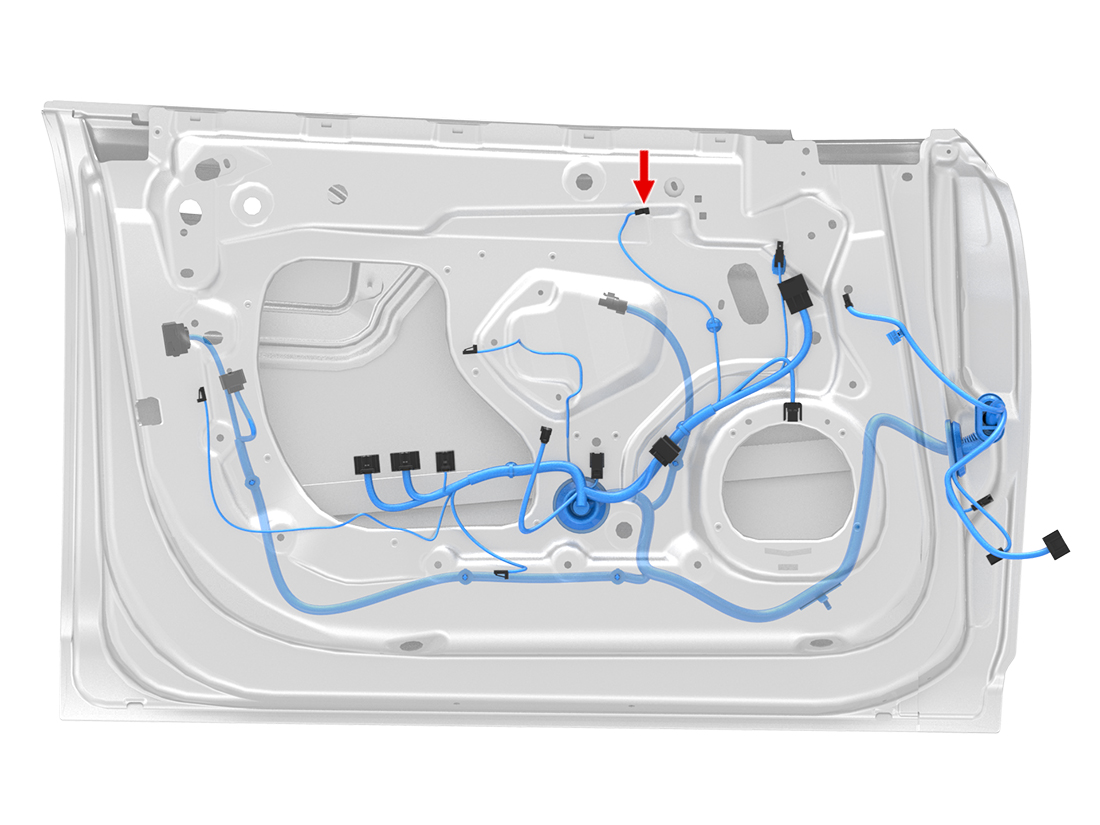

Location:
Connector Detail: AMP 1-1718333-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | Z36-GDD01-R | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | YE | 0.35 | SN | X301-7 | AMP 5-928999-1 | 1099455-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | Z36-GDD01-R | AMP 5-928999-1 | 1099455-00-B | ||
| 2 | YE | 0.35 | SN | X301-7 | AMP 5-928999-1 | 1099455-00-B |
