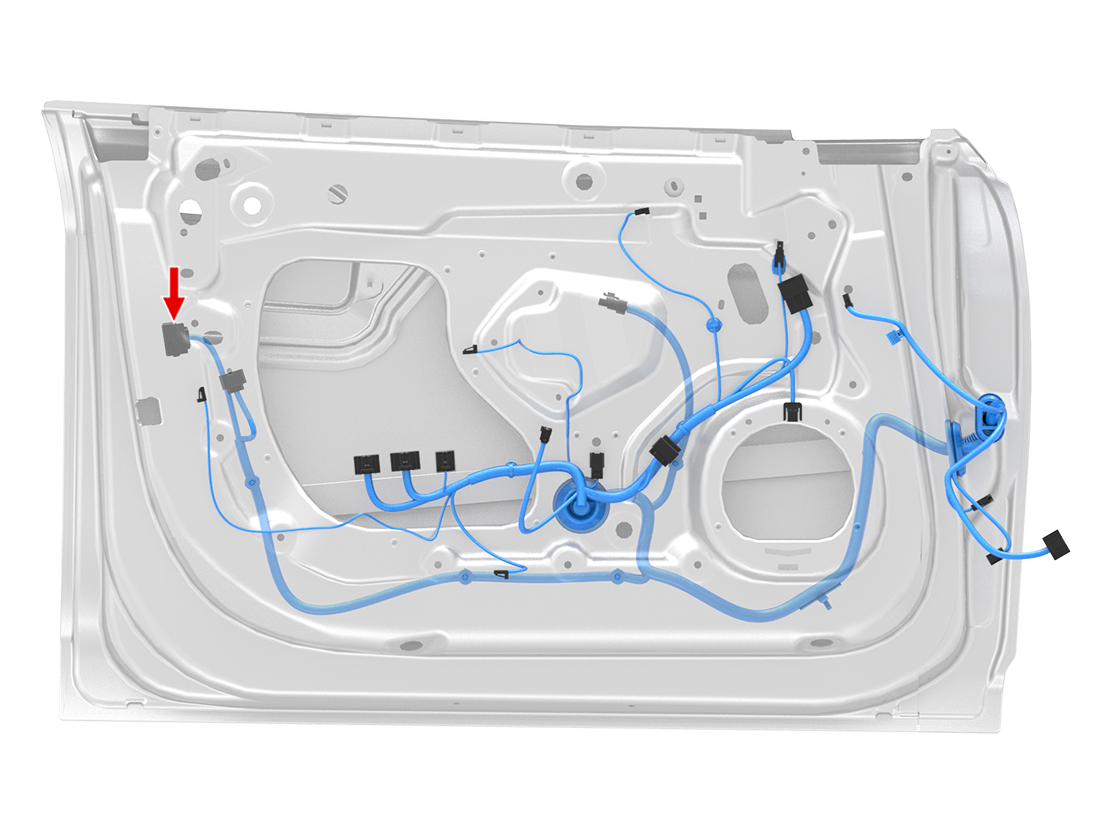

Connector Detail: AMP 6-1355688-5
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | GY | 0.35 | AU | X301-1 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 4 | BK | 0.35 | AU | X301-21 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 6 | OG | 0.35 | AU | Z5-SEC11-L | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 7 | GY/WH | 0.35 | AU | X301-5 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 8 | BK | 0.35 | AU | Z36-GDD01-L | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | GY | 0.35 | AU | X301-1 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 4 | BK | 0.35 | AU | X301-21 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 6 | OG | 0.35 | AU | Z5-SEC11-L | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 7 | GY/WH | 0.35 | AU | X301-5 | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
| 8 | BK | 0.35 | AU | Z36-GDD01-L | AMP 969005-3 | AMP 964971-1 | 1099472-00-B | |
