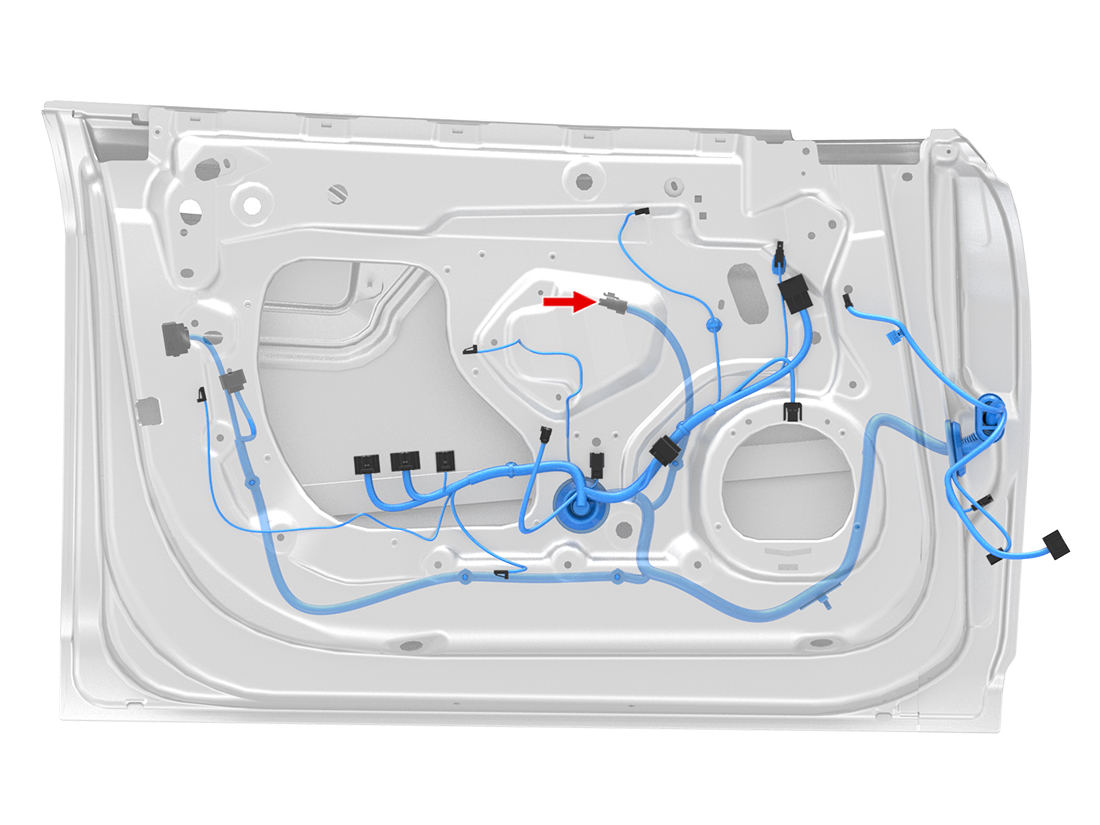

Connector Detail: FCI 211PC069S8049
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 0.5 | SN | X311-4 | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 2 | OG | 0.5 | SN | Z5-SEC11-R | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 3 | GY | 1.5 | SN | X943F-1 | FCI 211CC3S2120 | TESLA MAT-160-345 | 1099492-00-A | |
| 4 | BK | 1.5 | SN | Z36-GDD01-L | FCI 211CC3S2120 | TESLA MAT-160-345 | 1099492-00-A | |
| 5 | WH | 0.5 | SN | Z2-DCL12-L | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 6 | WH/RD | 0.5 | SN | X311-1 | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 0.5 | SN | X311-4 | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 2 | OG | 0.5 | SN | Z5-SEC11-R | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 3 | GY | 1.5 | SN | X943F-1 | FCI 211CC3S2120 | TESLA MAT-160-345 | 1099492-00-A | |
| 4 | BK | 1.5 | SN | Z36-GDD01-L | FCI 211CC3S2120 | TESLA MAT-160-345 | 1099492-00-A | |
| 5 | WH | 0.5 | SN | Z2-DCL12-L | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 6 | WH/RD | 0.5 | SN | X311-1 | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
