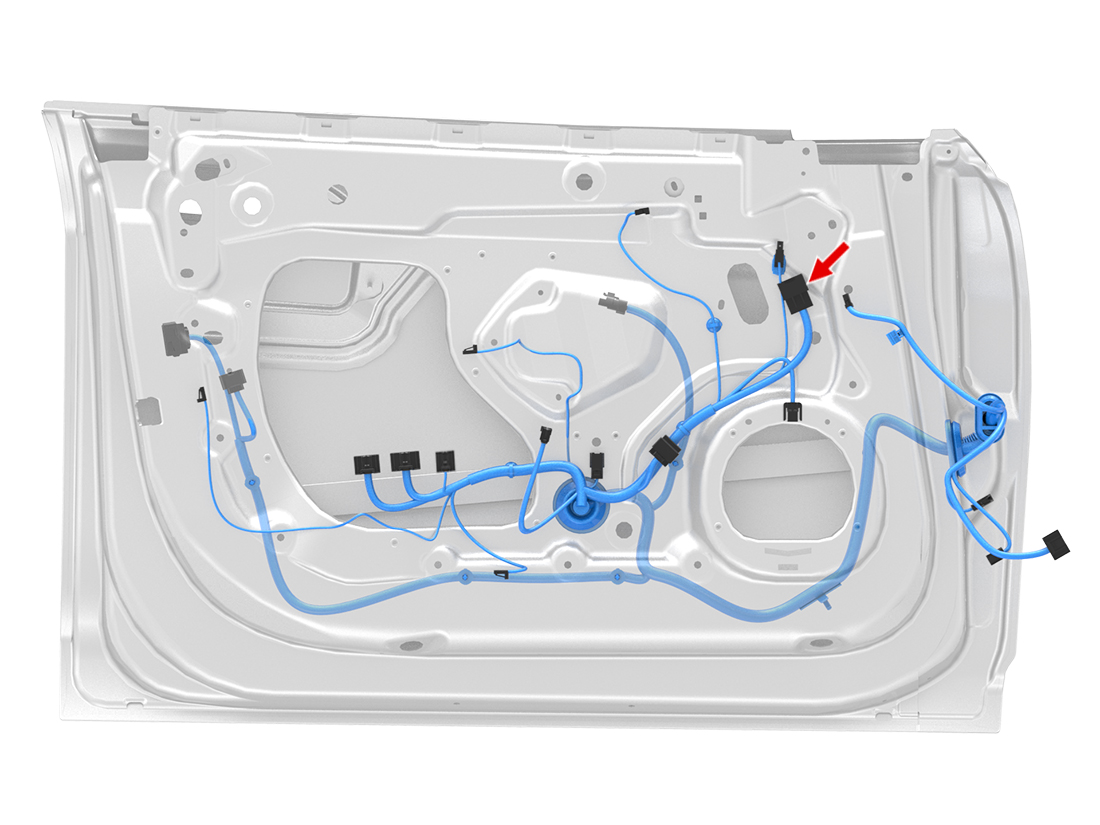

Connector Detail: YAZAKI 7282-6568-40
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GY | 0.35 | SN | X302-4 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 2 | RD/YE | 0.35 | SN | X301-10 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 3 | BU | 0.35 | SN | X301-23 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 5 | RD/BK | 0.35 | SN | X302-8 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 6 | OG | 0.35 | SN | X943F-8 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 7 | RD/VT | 0.35 | SN | X302-5 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 8 | RD/GN | 0.35 | SN | X302-6 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 10 | BN | 0.35 | SN | X301-12 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 11 | GY | 0.35 | SN | X302-18 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 12 | WH/BU | 0.35 | SN | X301-11 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 15 | BK | 0.35 | SN | Z36-GDD01-R | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 16 | GN | 0.35 | SN | X943F-16 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 17 | YE/WH | 0.35 | SN | X302-19 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 18 | WH/BK | 0.35 | SN | X302-21 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 20 | GN | 0.35 | SN | X301-24 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GY | 0.35 | SN | X302-4 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 2 | RD/YE | 0.35 | SN | X301-10 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 3 | BU | 0.35 | SN | X301-23 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 5 | RD/BK | 0.35 | SN | X302-8 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 6 | OG | 0.35 | SN | X943F-8 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 7 | RD/VT | 0.35 | SN | X302-5 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 8 | RD/GN | 0.35 | SN | X302-6 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 10 | BN | 0.35 | SN | X301-12 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 11 | GY | 0.35 | SN | X302-18 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 12 | WH/BU | 0.35 | SN | X301-11 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 15 | BK | 0.35 | SN | Z36-GDD01-R | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 16 | GN | 0.35 | SN | X943F-16 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 17 | YE/WH | 0.35 | SN | X302-19 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 18 | WH/BK | 0.35 | SN | X302-21 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
| 20 | GN | 0.35 | SN | X301-24 | YAZAKI 7114-4720-02 | | 1099551-00-B | |
