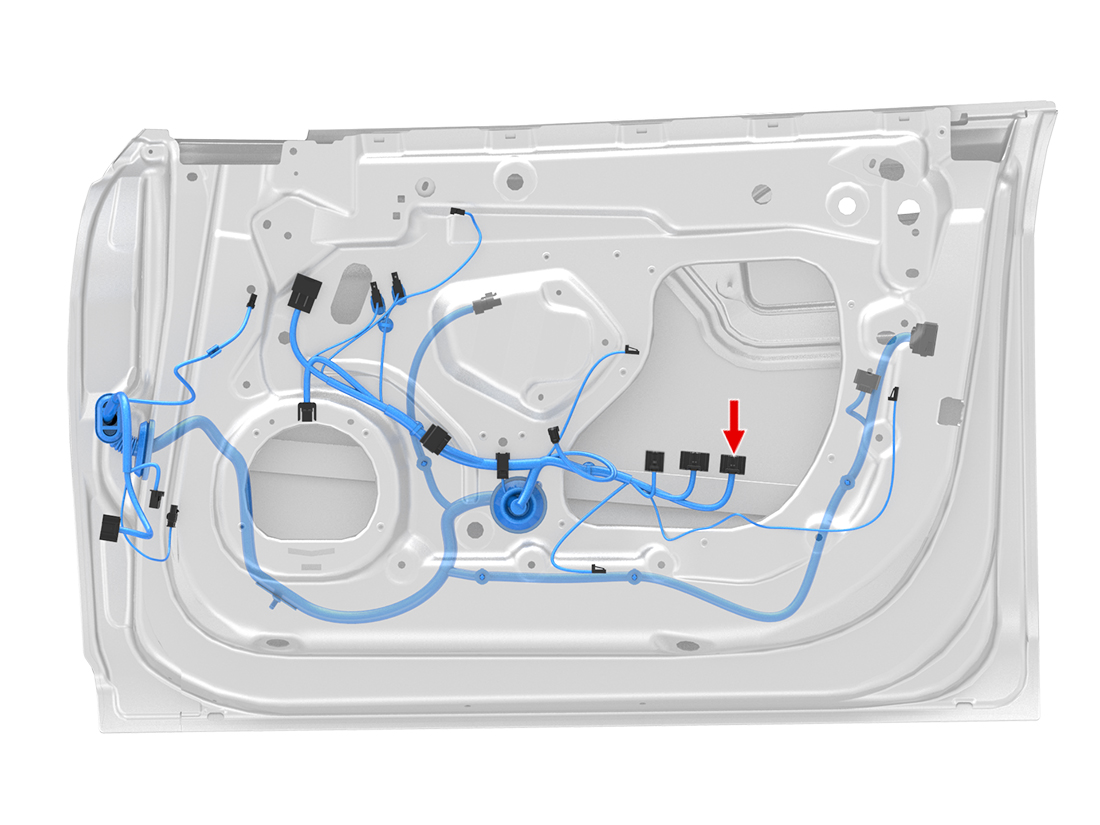

Connector Detail: JAE MX34024SF1
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GY | 0.35 | SN | X342-8 | JAE M34S75C4F1 | | 1099499-00-B | |
| 2 | RD/GN | 0.35 | SN | X944F-7 | JAE M34S75C4F1 | | 1099499-00-B | |
| 3 | GN/WH | 0.35 | SN | X929F-9 | JAE M34S75C4F1 | | 1099499-00-B | |
| 4 | VT | 0.35 | SN | Z12-DCR14-L | JAE M34S75C4F1 | | 1099499-00-B | |
| 5 | GY/WH | 0.35 | SN | X342-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 7 | YE/WH | 0.35 | SN | X337-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 8 | OG | 0.35 | SN | X336-3 | JAE M34S75C4F1 | | 1099499-00-B | |
| 9 | GY | 0.35 | SN | Z10-DCR15-L | JAE M34S75C4F1 | | 1099499-00-B | |
| 10 | RD/YE | 0.35 | SN | X346-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 11 | WH/BU | 0.35 | SN | X346-12 | JAE M34S75C4F1 | | 1099499-00-B | |
| 12 | BN | 0.35 | SN | X346-10 | JAE M34S75C4F1 | | 1099499-00-B | |
| 14 | GY | 0.35 | SN | X944F-9 | JAE M34S75C4F1 | | 1099499-00-B | |
| 15 | BN/WH | 0.35 | SN | X929F-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 16 | YE | 0.35 | SN | X929F-1 | JAE M34S75C4F1 | | 1099499-00-B | |
| 18 | WH/BU | 0.35 | SN | X339-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 18 | WH/BU | 0.35 | SN | X340-5 | JAE M34S75C4F1 | | 1099499-00-B | |
| 19 | GN | 0.35 | SN | X336-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 20 | WH | 0.35 | SN | Z8-DCR12-R | JAE M34S75C4F1 | | 1099499-00-B | |
| 21 | BK | 0.35 | SN | X342-9 | JAE M34S75C4F1 | | 1099499-00-B | |
| 22 | BK/GY | 0.35 | SN | X929F-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 23 | BU | 0.35 | SN | X346-3 | JAE M34S75C4F1 | | 1099499-00-B | |
| 24 | YE | 0.35 | SN | X346-20 | JAE M34S75C4F1 | | 1099499-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GY | 0.35 | SN | X342-8 | JAE M34S75C4F1 | | 1099499-00-B | |
| 2 | RD/GN | 0.35 | SN | X944F-7 | JAE M34S75C4F1 | | 1099499-00-B | |
| 3 | GN/WH | 0.35 | SN | X929F-9 | JAE M34S75C4F1 | | 1099499-00-B | |
| 4 | VT | 0.35 | SN | Z12-DCR14-L | JAE M34S75C4F1 | | 1099499-00-B | |
| 5 | GY/WH | 0.35 | SN | X342-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 7 | YE/WH | 0.35 | SN | X337-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 8 | OG | 0.35 | SN | X336-3 | JAE M34S75C4F1 | | 1099499-00-B | |
| 9 | GY | 0.35 | SN | Z10-DCR15-L | JAE M34S75C4F1 | | 1099499-00-B | |
| 10 | RD/YE | 0.35 | SN | X346-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 11 | WH/BU | 0.35 | SN | X346-12 | JAE M34S75C4F1 | | 1099499-00-B | |
| 12 | BN | 0.35 | SN | X346-10 | JAE M34S75C4F1 | | 1099499-00-B | |
| 14 | GY | 0.35 | SN | X944F-9 | JAE M34S75C4F1 | | 1099499-00-B | |
| 15 | BN/WH | 0.35 | SN | X929F-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 16 | YE | 0.35 | SN | X929F-1 | JAE M34S75C4F1 | | 1099499-00-B | |
| 18 | WH/BU | 0.35 | SN | X339-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 18 | WH/BU | 0.35 | SN | X340-5 | JAE M34S75C4F1 | | 1099499-00-B | |
| 19 | GN | 0.35 | SN | X336-2 | JAE M34S75C4F1 | | 1099499-00-B | |
| 20 | WH | 0.35 | SN | Z8-DCR12-R | JAE M34S75C4F1 | | 1099499-00-B | |
| 21 | BK | 0.35 | SN | X342-9 | JAE M34S75C4F1 | | 1099499-00-B | |
| 22 | BK/GY | 0.35 | SN | X929F-4 | JAE M34S75C4F1 | | 1099499-00-B | |
| 23 | BU | 0.35 | SN | X346-3 | JAE M34S75C4F1 | | 1099499-00-B | |
| 24 | YE | 0.35 | SN | X346-20 | JAE M34S75C4F1 | | 1099499-00-B | |
