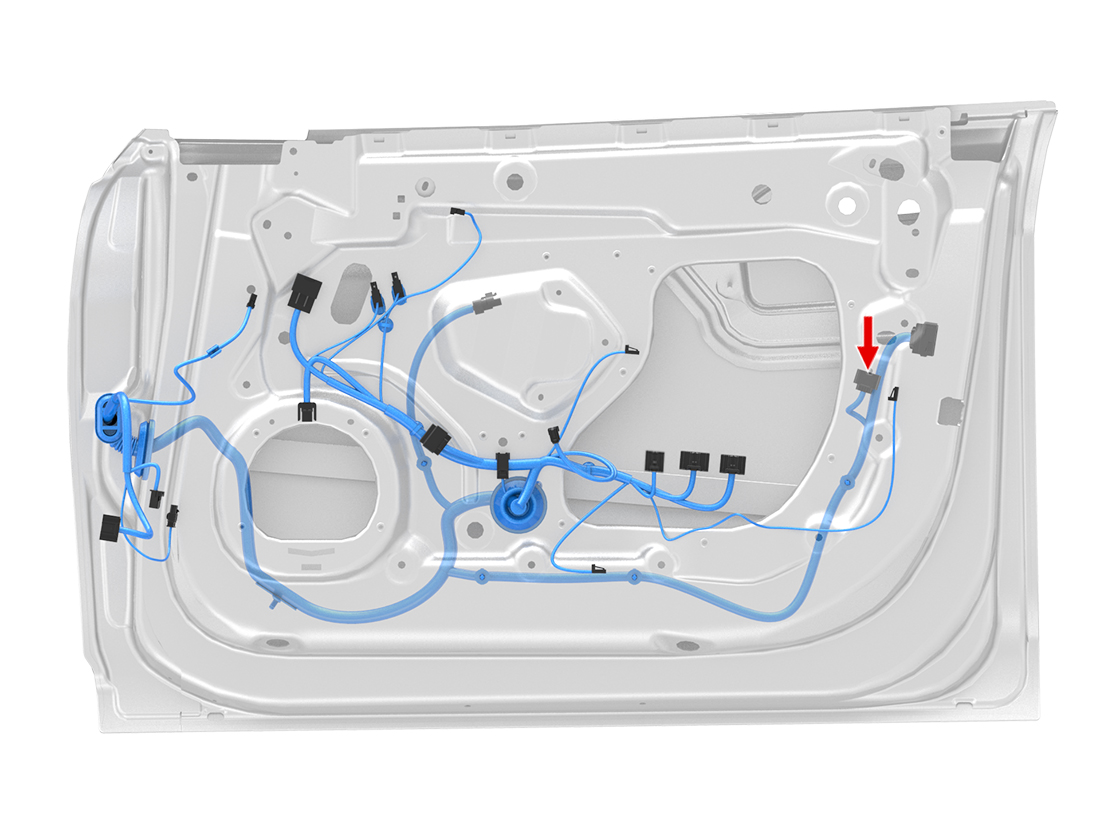

Connector Detail: YAZAKI 7283-8856-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.35 | SN | Z72-PRM26-L | YAZAKI 7116-4415-02 | YAZAKI 7158-3166-60 | 1102120-00-B | |
| 2 | BK | 0.35 | SN | Z73-GDC09-R | YAZAKI 7116-4415-02 | YAZAKI 7158-3166-60 | 1102120-00-B | |
| 5 | WH/BU | 0.35 | SN | X331-18 | YAZAKI 7116-4415-02 | YAZAKI 7158-3166-60 | 1102120-00-B | |
| 10 | WH | 0.35 | SN | Z8-DCR12-L | YAZAKI 7116-4415-02 | YAZAKI 7158-3166-60 | 1102120-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.35 | SN | Z72-PRM26-L | YAZAKI 7116-4415-02 | YAZAKI 7158-3166-60 | 1102120-00-B | |
| 2 | BK | 0.35 | SN | Z73-GDC09-R | YAZAKI 7116-4415-02 | YAZAKI 7158-3166-60 | 1102120-00-B | |
| 5 | WH/BU | 0.35 | SN | X331-18 | YAZAKI 7116-4415-02 | YAZAKI 7158-3166-60 | 1102120-00-B | |
| 10 | WH | 0.35 | SN | Z8-DCR12-L | YAZAKI 7116-4415-02 | YAZAKI 7158-3166-60 | 1102120-00-B | |
