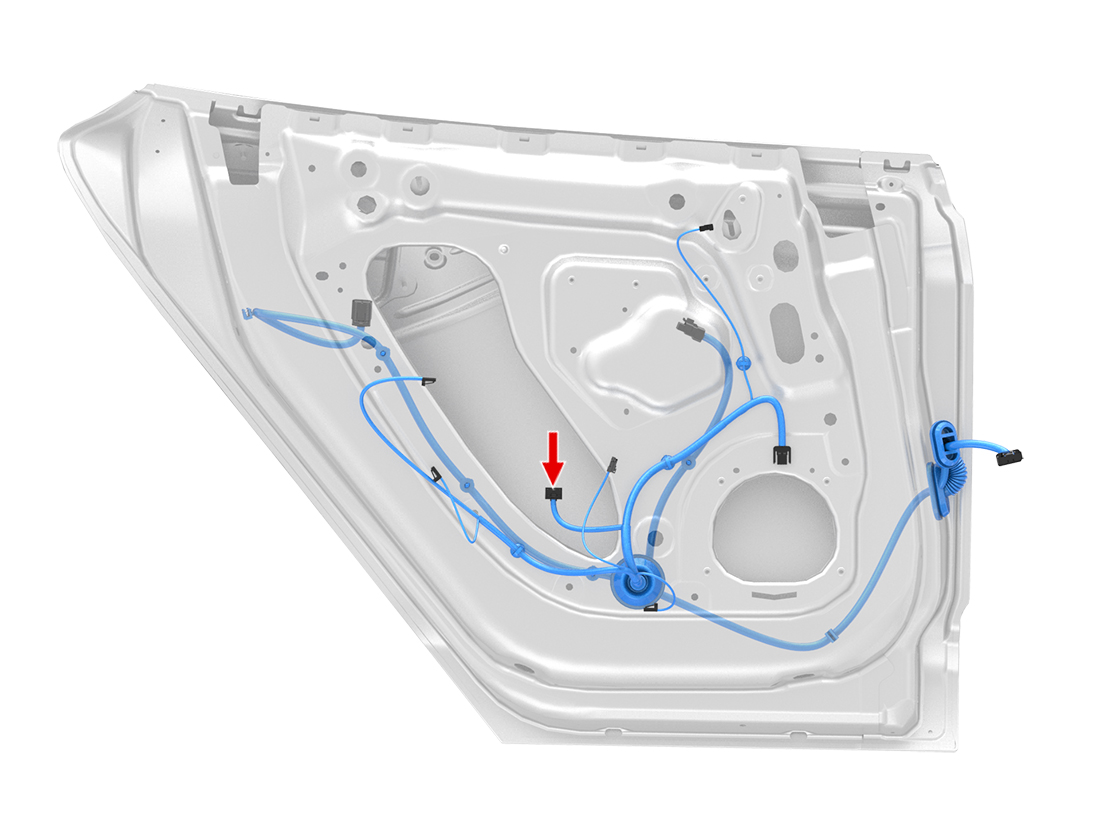

Connector Detail: MOLEX 34824-5124
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X360A-1 | MOLEX 560023-0421 | | 1108392-00-C | |
| 2 | BN | 0.35 | SN | X360A-2 | MOLEX 560023-0421 | | 1108392-00-C | |
| 3 | WH | 0.35 | SN | Z68-DCL12-L | MOLEX 560023-0421 | | 1108392-00-C | |
| 4 | RD/BU | 0.35 | SN | X945F-7 | MOLEX 560023-0421 | | 1108392-00-C | |
| 5 | BK/WH | 0.35 | SN | X360A-6 | MOLEX 560023-0421 | | 1108392-00-C | |
| 6 | RD/WH | 0.35 | SN | X360A-5 | MOLEX 560023-0421 | | 1108392-00-C | |
| 7 | OG | 0.35 | SN | X360A-4 | MOLEX 560023-0421 | | 1108392-00-C | |
| 8 | GN | 0.35 | SN | X360A-3 | MOLEX 560023-0421 | | 1108392-00-C | |
| 9 | BK | 0.35 | SN | Z75-GDH14-X | MOLEX 560023-0421 | | 1108392-00-C | |
| 11 | BU | 0.35 | SN | X945F-2 | MOLEX 560023-0421 | | 1108392-00-C | |
| 12 | BK | 0.35 | SN | Z75-GDH14-R | MOLEX 560023-0421 | | 1108392-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 0.35 | SN | X360A-1 | MOLEX 560023-0421 | | 1108392-00-C | |
| 2 | BN | 0.35 | SN | X360A-2 | MOLEX 560023-0421 | | 1108392-00-C | |
| 3 | WH | 0.35 | SN | Z68-DCL12-L | MOLEX 560023-0421 | | 1108392-00-C | |
| 4 | RD/BU | 0.35 | SN | X945F-7 | MOLEX 560023-0421 | | 1108392-00-C | |
| 5 | BK/WH | 0.35 | SN | X360A-6 | MOLEX 560023-0421 | | 1108392-00-C | |
| 6 | RD/WH | 0.35 | SN | X360A-5 | MOLEX 560023-0421 | | 1108392-00-C | |
| 7 | OG | 0.35 | SN | X360A-4 | MOLEX 560023-0421 | | 1108392-00-C | |
| 8 | GN | 0.35 | SN | X360A-3 | MOLEX 560023-0421 | | 1108392-00-C | |
| 9 | BK | 0.35 | SN | Z75-GDH14-X | MOLEX 560023-0421 | | 1108392-00-C | |
| 11 | BU | 0.35 | SN | X945F-2 | MOLEX 560023-0421 | | 1108392-00-C | |
| 12 | BK | 0.35 | SN | Z75-GDH14-R | MOLEX 560023-0421 | | 1108392-00-C | |
