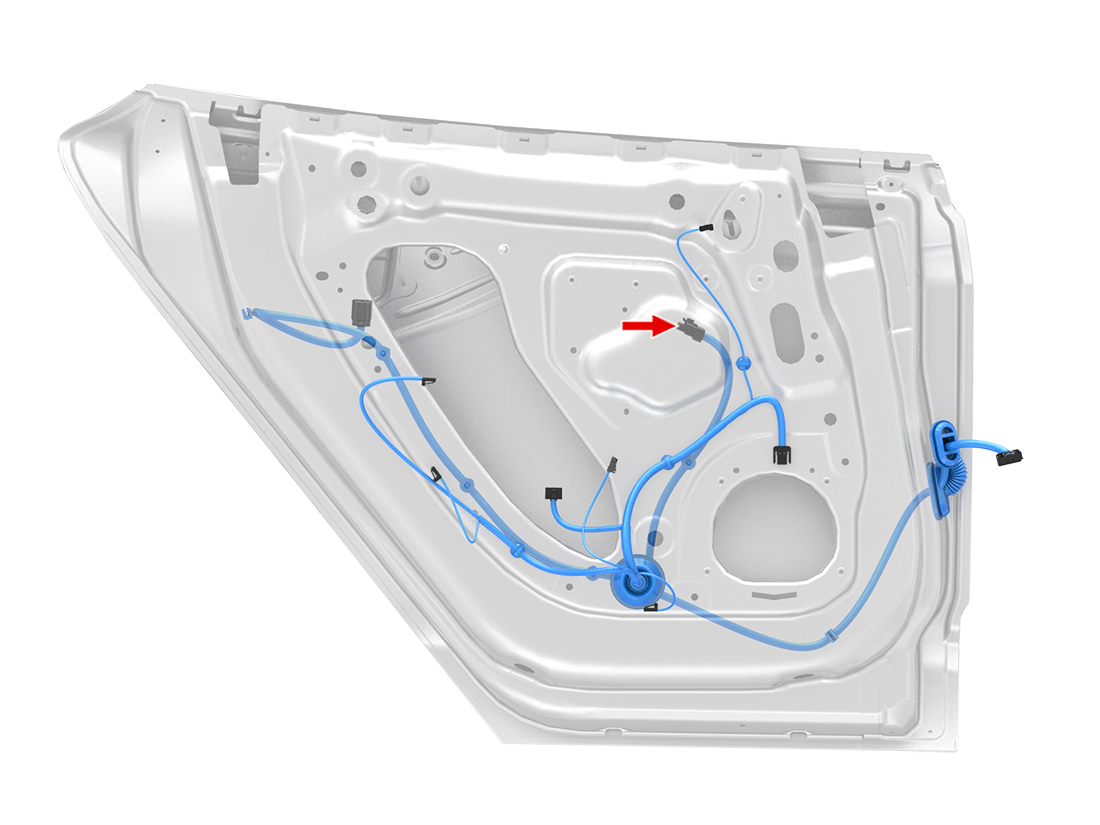

Connector Detail: FCI 211PC069S8049
Color: Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE/WH | 0.5 | SN | X365-4 | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 2 | VT/WH | 0.5 | SN | X945F-17 | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 3 | RD/GN | 1.5 | SN | X945F-1 | FCI 211CC3S2120 | TESLA MAT-160-345 | 1099492-00-A | |
| 4 | BK | 2 | SN | Z75-GDH14-R | FCI 211CC3S2120 | TESLA MAT-160-345 | 1099492-00-A | |
| 5 | WH | 0.5 | SN | Z68-DCL12-L | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 6 | WH/BK | 0.5 | SN | X365-1 | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE/WH | 0.5 | SN | X365-4 | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 2 | VT/WH | 0.5 | SN | X945F-17 | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 3 | RD/GN | 1.5 | SN | X945F-1 | FCI 211CC3S2120 | TESLA MAT-160-345 | 1099492-00-A | |
| 4 | BK | 2 | SN | Z75-GDH14-R | FCI 211CC3S2120 | TESLA MAT-160-345 | 1099492-00-A | |
| 5 | WH | 0.5 | SN | Z68-DCL12-L | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
| 6 | WH/BK | 0.5 | SN | X365-1 | FCI 211CC2S1160P | TESLA MAT-140-280 | 1099491-00-A | |
