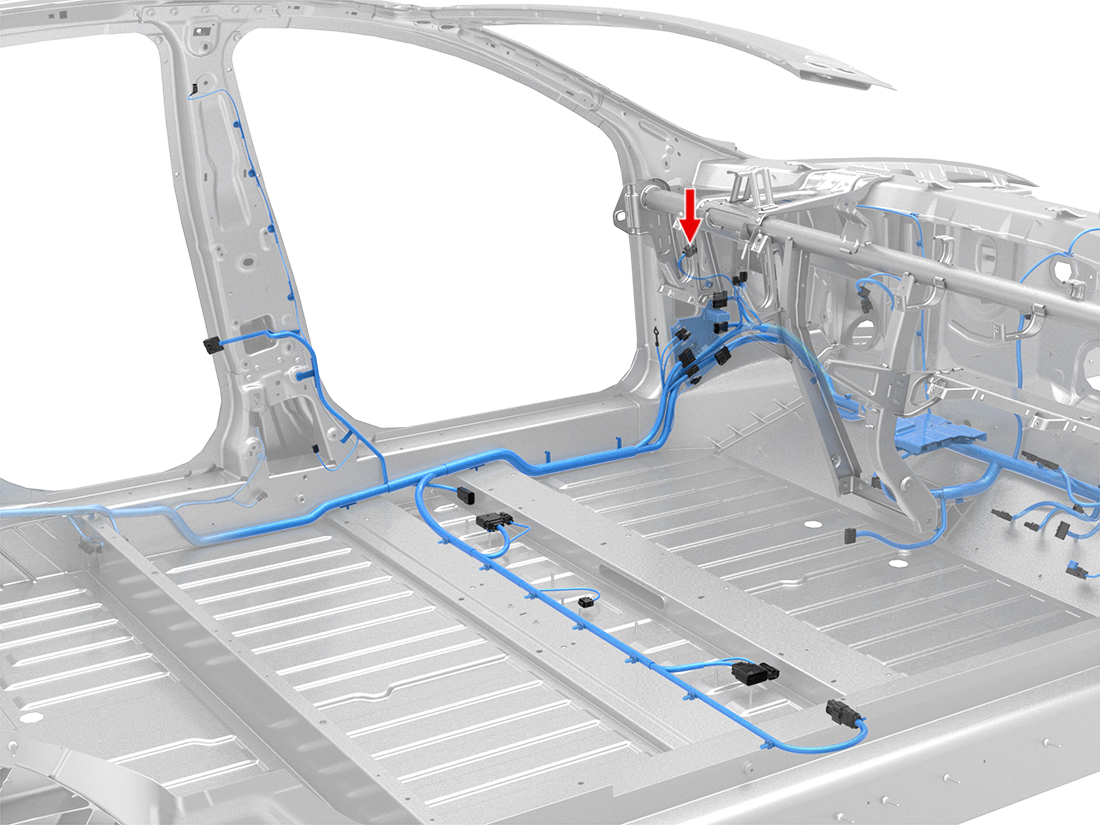

Connector Detail: SUMITOMO 6189-0133
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 1 | SN | X405-10 | SUMITOMO 1500-0110 | SUMITOMO 7165-0118 | 1099526-00-B | |
| 2 | RD/WH | 0.35 | SN | X404-8 | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 3 | WH/BU | 0.35 | SN | X404-7 | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 4 | RD/WH | 1 | SN | X405-9 | SUMITOMO 1500-0110 | SUMITOMO 7165-0118 | 1099526-00-B | |
| 5 | GY | 0.35 | SN | Z60-PSR06-R | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 6 | BN/WH | 0.35 | SN | Z59-PSR03-R | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN | 1 | SN | X405-10 | SUMITOMO 1500-0110 | SUMITOMO 7165-0118 | 1099526-00-B | |
| 2 | RD/WH | 0.35 | SN | X404-8 | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 3 | WH/BU | 0.35 | SN | X404-7 | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 4 | RD/WH | 1 | SN | X405-9 | SUMITOMO 1500-0110 | SUMITOMO 7165-0118 | 1099526-00-B | |
| 5 | GY | 0.35 | SN | Z58-PSR06-R | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 6 | BN/WH | 0.35 | SN | Z57-PSR03-R | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
