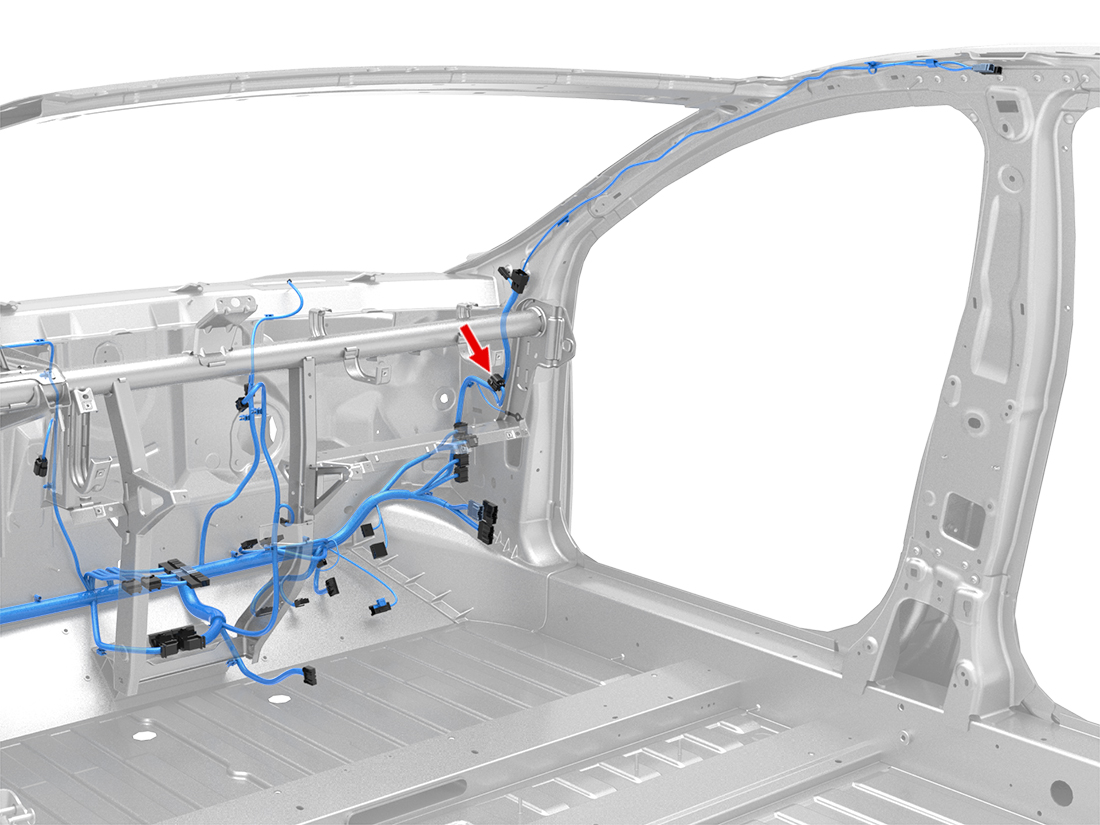

Connector Detail: SUMITOMO 6189-0133
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN/WH | 0.35 | SN | Z59-PSR03-L | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 2 | GY | 0.35 | SN | Z60-PSR06-L | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 3 | RD/VT | 1 | SN | X405-5 | SUMITOMO 1500-0110 | SUMITOMO 7165-0118 | 1099526-00-B | |
| 4 | GN/WH | 0.35 | SN | X404-9 | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 5 | WH | 0.35 | SN | X404-10 | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 6 | VT | 1 | SN | X405-6 | SUMITOMO 1500-0110 | SUMITOMO 7165-0118 | 1099526-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN/WH | 0.35 | SN | Z57-PSR03-L | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 2 | GY | 0.35 | SN | Z58-PSR06-L | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 3 | RD/VT | 1 | SN | X405-5 | SUMITOMO 1500-0110 | SUMITOMO 7165-0118 | 1099526-00-B | |
| 4 | GN/WH | 0.35 | SN | X404-9 | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 5 | WH | 0.35 | SN | X404-10 | YAZAKI 7116-1420 | SUMITOMO 7165-0385 | 1099526-00-B | |
| 6 | VT | 1 | SN | X405-6 | SUMITOMO 1500-0110 | SUMITOMO 7165-0118 | 1099526-00-B | |
