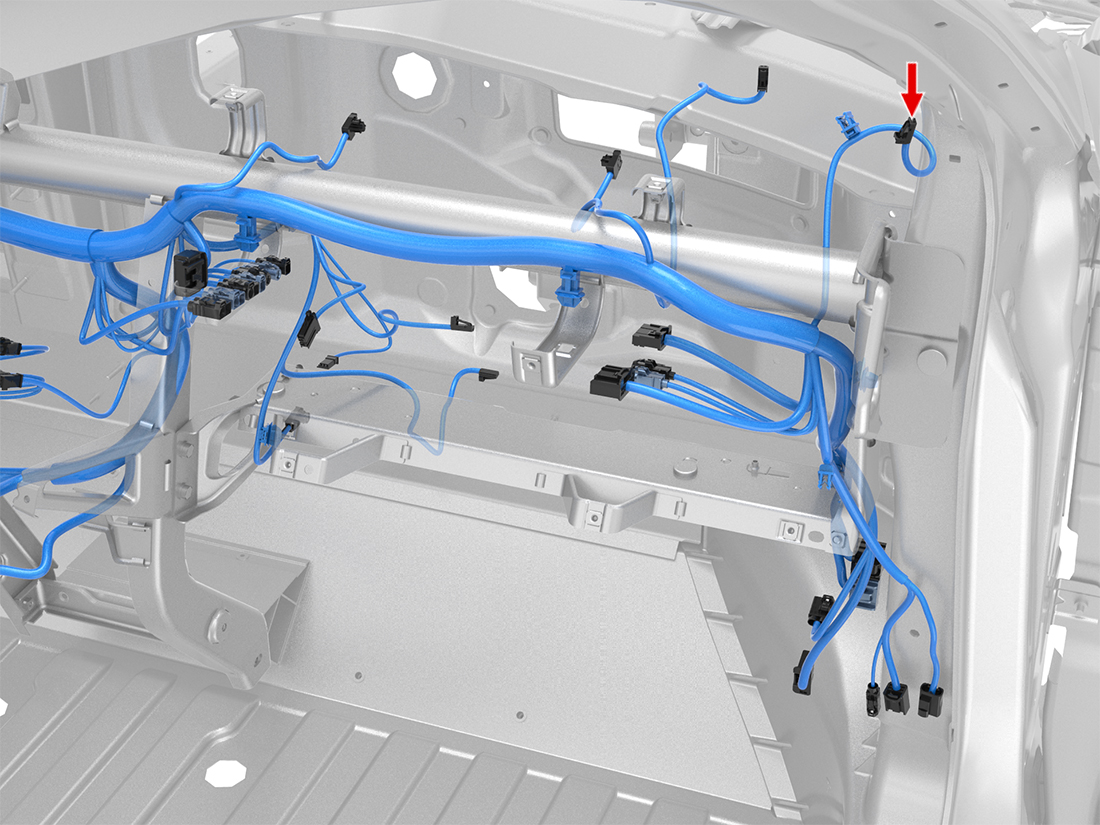

Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.75 | SN | X426-1 | AMP 5-963715-1 | | 1099458-00-A | |
| 1 | GN/WH | 0.75 | SN | Z68-AUD15-L | AMP 5-963715-1 | | 1099458-00-A | |
| 2 | BK | 0.75 | SN | X426-2 | AMP 5-963715-1 | | 1099458-00-A | |
| 2 | GN | 0.75 | SN | Z69-AUD16-R | AMP 5-963715-1 | | 1099458-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK/WH | 0.75 | SN | X426-1 | AMP 5-963715-1 | | 1099458-00-A | |
| 1 | GN/WH | 0.75 | SN | Z68-AUD15-L | AMP 5-963715-1 | | 1099458-00-A | |
| 2 | BK | 0.75 | SN | X426-2 | AMP 5-963715-1 | | 1099458-00-A | |
| 2 | GN | 0.75 | SN | Z69-AUD16-R | AMP 5-963715-1 | | 1099458-00-A | |
