X415 - s-rhd-sop11

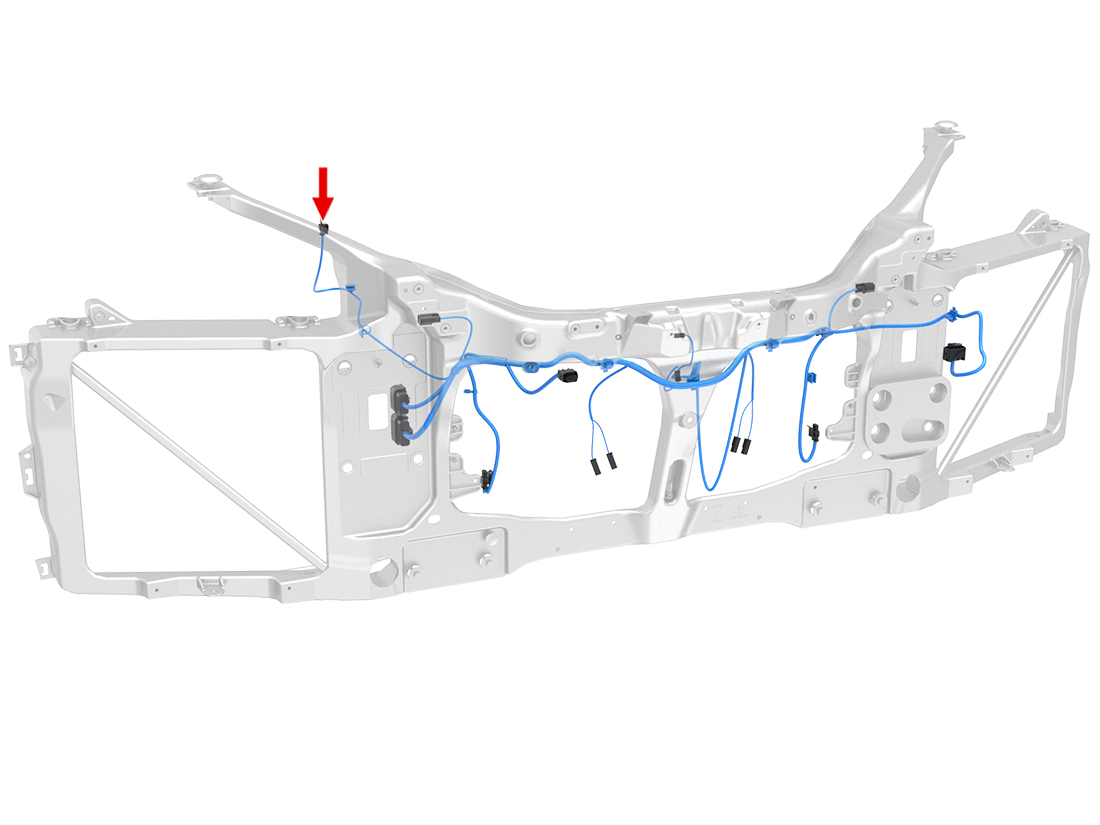

Location:
Connector Detail: AMP 1-1718643-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.75 | SN | X965F-7 | AMP 7-1452668-1 | AMP 967067-1 | 1099462-00-C | |
| 2 | OG/BK | 0.75 | SN | X965F-8 | AMP 7-1452668-1 | AMP 967067-1 | 1099462-00-C |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.75 | SN | X965F-7 | AMP 7-1452668-1 | AMP 967067-1 | 1099462-00-C | |
| 2 | OG/BK | 0.75 | SN | X965F-8 | AMP 7-1452668-1 | AMP 967067-1 | 1099462-00-C |
