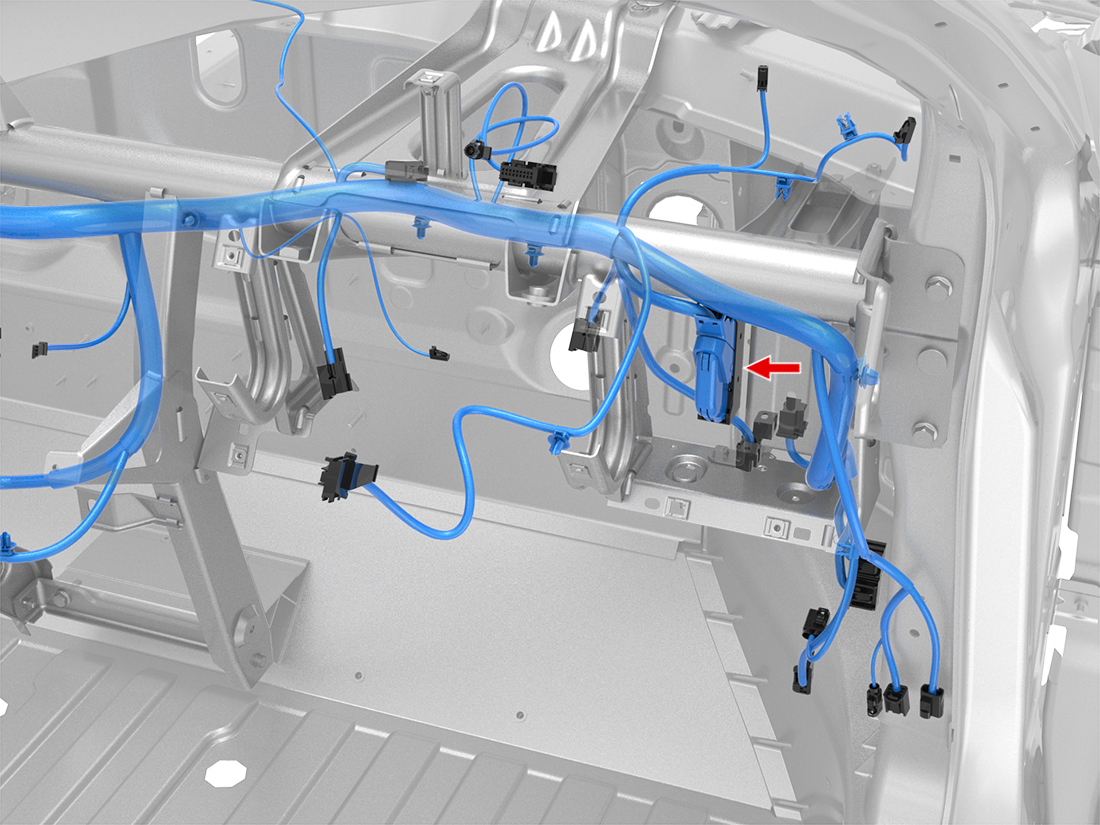

Connector Detail: AMP 1534180-1
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: AMP 1534180-2
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 1.5 | SN | X575-8 | AMP 1241404-1 | | 1099430-00-A | |
| 2 | BK | 1.5 | SN | X947F-4 | AMP 1241404-1 | | 1099430-00-A | |
| 3 | BU/WH | 1.5 | SN | X947F-7 | AMP 1241390-1 | | 1099429-00-A | |
| 4 | GN/WH | 1.5 | SN | X947F-12 | AMP 1241390-1 | | 1099429-00-A | |
| 5 | OG | 1.5 | SN | X970F-1 | AMP 1241390-1 | | 1099429-00-A | |
| 6 | BU | 0.75 | SN | X970F-6 | AMP 1241374-1 | | 1099427-00-A | |
| 7 | BK | 0.75 | SN | X970F-12 | AMP 1241374-1 | | 1099427-00-A | |
| 11 | YE | 0.35 | SN | X427-4 | AMP 1564980-1 | | 1099427-00-A | |
| 12 | BN/WH | 0.35 | SN | X427-8 | AMP 1564980-1 | | 1099427-00-A | |
| 15 | BU | 1.5 | SN | X947F-13 | AMP 1241390-1 | | 1099429-00-A | |
| 16 | GN | 1.5 | SN | X947F-18 | AMP 1241390-1 | | 1099429-00-A | |
| 17 | VT | 1.5 | SN | X970F-8 | AMP 1241390-1 | | 1099429-00-A | |
| 18 | VT | 0.75 | SN | X970F-11 | AMP 1241374-1 | | 1099427-00-A | |
| 19 | GN | 0.75 | SN | X970F-7 | AMP 1241374-1 | | 1099427-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 1.5 | SN | X575-8 | AMP 1241404-1 | | 1099430-00-A | |
| 2 | BK | 1.5 | SN | X947F-4 | AMP 1241404-1 | | 1099430-00-A | |
| 3 | BU/WH | 1.5 | SN | X947F-7 | AMP 1241390-1 | | 1099429-00-A | |
| 4 | GN/WH | 1.5 | SN | X947F-12 | AMP 1241390-1 | | 1099429-00-A | |
| 5 | OG | 1.5 | SN | X970F-1 | AMP 1241390-1 | | 1099429-00-A | |
| 6 | BU | 0.75 | SN | X970F-6 | AMP 1241374-1 | | 1099427-00-A | |
| 7 | BK | 0.75 | SN | X970F-12 | AMP 1241374-1 | | 1099427-00-A | |
| 11 | YE | 0.35 | SN | X427-4 | AMP 1564980-1 | | 1099427-00-A | |
| 12 | BN/WH | 0.35 | SN | X427-8 | AMP 1564980-1 | | 1099427-00-A | |
| 15 | BU | 1.5 | SN | X947F-13 | AMP 1241390-1 | | 1099429-00-A | |
| 16 | GN | 1.5 | SN | X947F-18 | AMP 1241390-1 | | 1099429-00-A | |
| 17 | VT | 1.5 | SN | X970F-8 | AMP 1241390-1 | | 1099429-00-A | |
| 18 | VT | 0.75 | SN | X970F-11 | AMP 1241374-1 | | 1099427-00-A | |
| 19 | GN | 0.75 | SN | X970F-7 | AMP 1241374-1 | | 1099427-00-A | |
