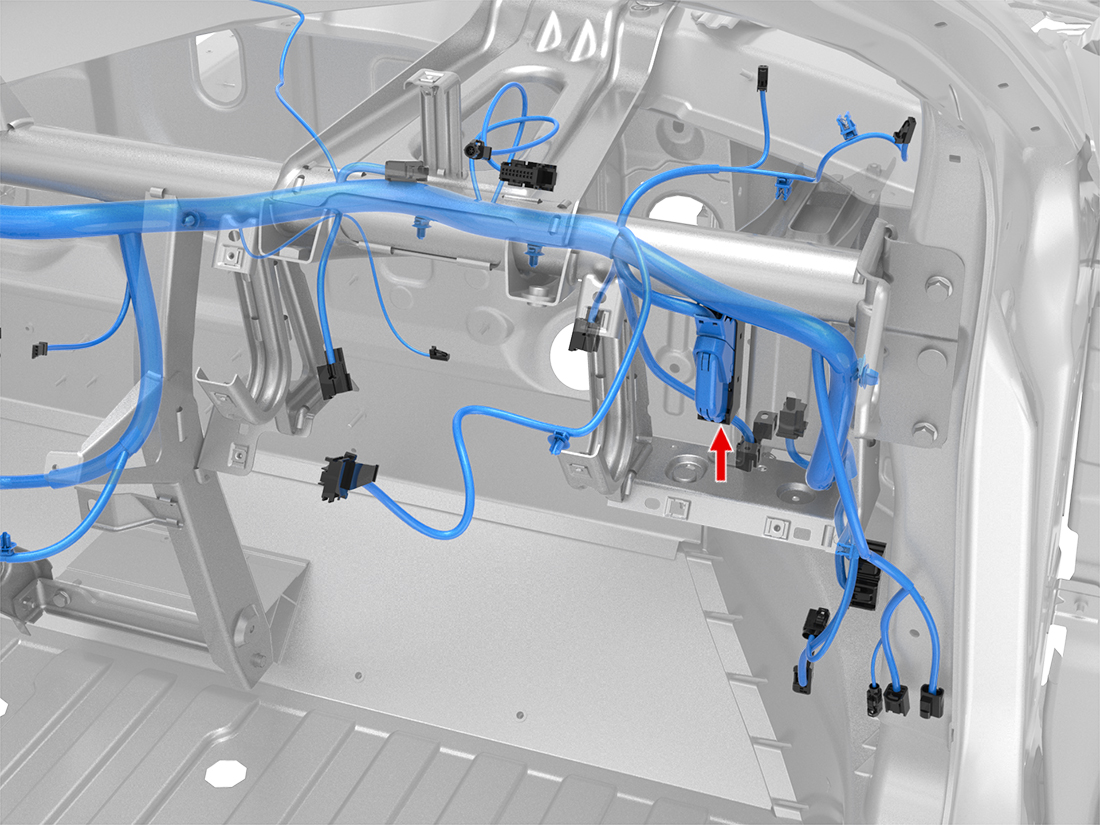

Connector Detail: AMP 1534181-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 23 | GY | 0.35 | SN | X427-1 | AMP 1564980-1 | | 1099427-00-A | |
| 24 | BU/WH | 0.35 | SN | X427-3 | AMP 1564980-1 | | 1099427-00-A | |
| 25 | RD/WH | 0.35 | SN | X427-5 | AMP 1564980-1 | | 1099427-00-A | |
| 26 | WH | 0.35 | SN | X427-7 | AMP 1564980-1 | | 1099427-00-A | |
| 27 | GN/WH | 0.35 | SN | X427-9 | AMP 1564980-1 | | 1099427-00-A | |
| 28 | BN | 0.35 | SN | X427-11 | AMP 1564980-1 | | 1099427-00-A | |
| 29 | BU | 0.35 | SN | X427-13 | AMP 1564980-1 | | 1099427-00-A | |
| 30 | RD | 0.35 | SN | X427-15 | AMP 1564980-1 | | 1099427-00-A | |
| 31 | BK | 0.35 | SN | X427-17 | AMP 1564980-1 | | 1099427-00-A | |
| 32 | GN | 0.35 | SN | X427-19 | AMP 1564980-1 | | 1099427-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 23 | GY | 0.35 | SN | X427-1 | AMP 1564980-1 | | 1099427-00-A | |
| 24 | BU/WH | 0.35 | SN | X427-3 | AMP 1564980-1 | | 1099427-00-A | |
| 25 | RD/WH | 0.35 | SN | X427-5 | AMP 1564980-1 | | 1099427-00-A | |
| 26 | WH | 0.35 | SN | X427-7 | AMP 1564980-1 | | 1099427-00-A | |
| 27 | GN/WH | 0.35 | SN | X427-9 | AMP 1564980-1 | | 1099427-00-A | |
| 28 | BN | 0.35 | SN | X427-11 | AMP 1564980-1 | | 1099427-00-A | |
| 29 | BU | 0.35 | SN | X427-13 | AMP 1564980-1 | | 1099427-00-A | |
| 30 | RD | 0.35 | SN | X427-15 | AMP 1564980-1 | | 1099427-00-A | |
| 31 | BK | 0.35 | SN | X427-17 | AMP 1564980-1 | | 1099427-00-A | |
| 32 | GN | 0.35 | SN | X427-19 | AMP 1564980-1 | | 1099427-00-A | |
