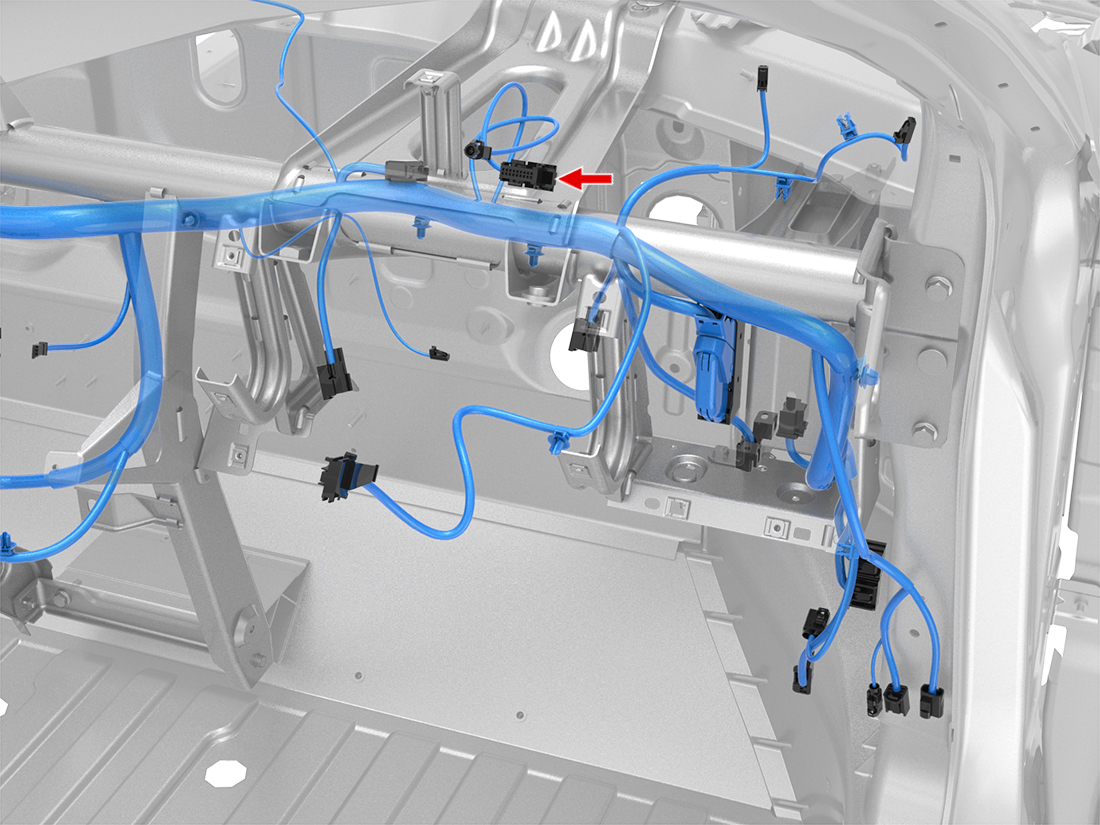

Connector Detail: AMP 1355348-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 6 | GN/WH | 0.35 | SN | X773-14 | AMP 5-928999-1 | | 1099455-00-B | |
| 7 | GN | 0.35 | SN | X773-3 | AMP 5-928999-1 | | 1099455-00-B | |
| 8 | BK | 0.5 | SN | Z18-+GDD11-L | AMP 5-963715-1 | | 1099458-00-A | |
| 13 | OG | 0.35 | SN | X429-4 | AMP 5-928999-1 | | 1099455-00-B | |
| 17 | RD/VT | 0.35 | SN | X576-7 | AMP 5-928999-1 | | 1099455-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 6 | GN/WH | 0.35 | SN | X773-14 | AMP 5-928999-1 | | 1099455-00-B | |
| 7 | GN | 0.35 | SN | X773-3 | AMP 5-928999-1 | | 1099455-00-B | |
| 8 | BK | 0.5 | SN | Z18-+GDD11-L | AMP 5-963715-1 | | 1099458-00-A | |
| 13 | OG | 0.35 | SN | X429-4 | AMP 5-928999-1 | | 1099455-00-B | |
| 17 | RD/VT | 0.35 | SN | X576-7 | AMP 5-928999-1 | | 1099455-00-B | |
