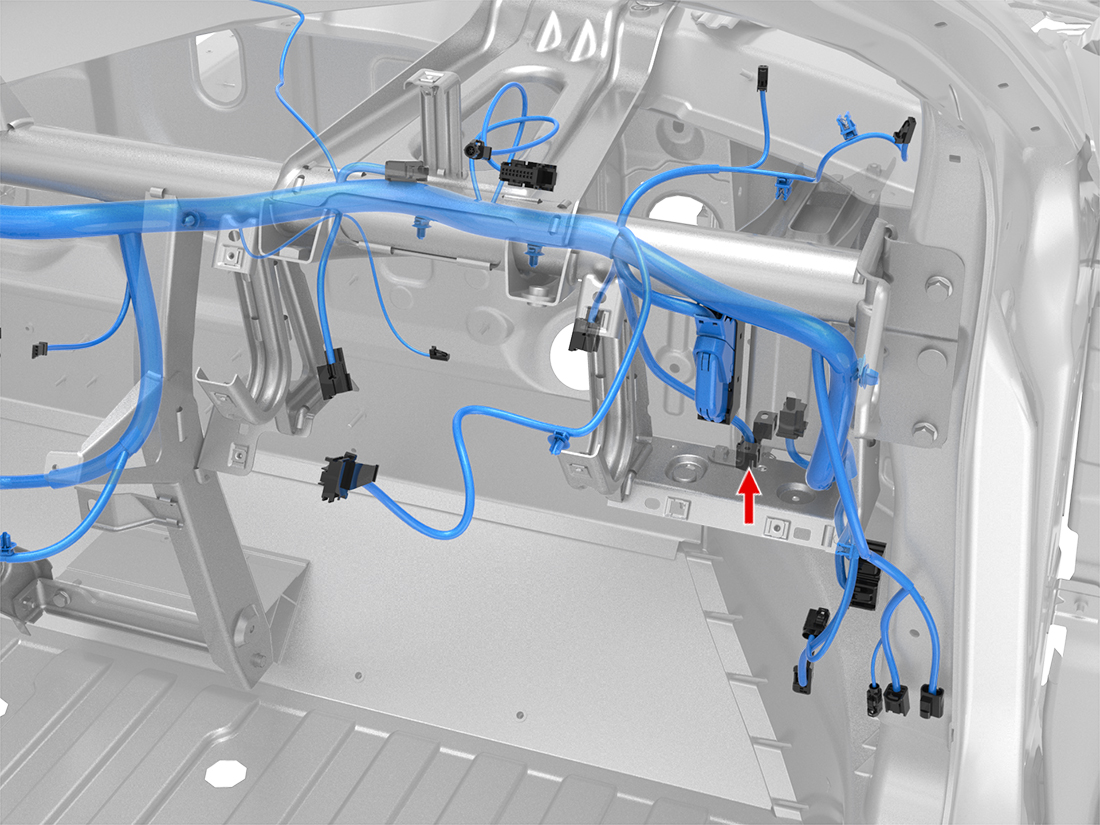

Connector Detail: DELPHI 12110250
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.5 | SN | X773-16 | DELPHI 12129373 | | 1099478-00-A | |
| 4 | BK | 0.5 | SN | Z18-+GDD11-L | DELPHI 12129373 | | 1099478-00-A | |
| 5 | BK | 0.5 | SN | Z18-+GDD11-L | DELPHI 12129373 | | 1099478-00-A | |
| 6 | BU/WH | 0.5 | SN | X429-10 | DELPHI 12129373 | | 1099478-00-A | |
| 7 | OG/BK | 0.5 | SN | Z55-KWL01-L | DELPHI 12129373 | | 1099478-00-A | |
| 9 | GN | 0.5 | SN | X773-5 | DELPHI 12129373 | | 1099478-00-A | |
| 14 | BU | 0.5 | SN | X429-20 | DELPHI 12129373 | | 1099478-00-A | |
| 16 | RD | 0.5 | SN | Z1-+PRM13_B-R | DELPHI 12129373 | | 1099478-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.5 | SN | X773-16 | DELPHI 12129373 | | 1099478-00-A | |
| 4 | BK | 0.5 | SN | Z18-+GDD11-L | DELPHI 12129373 | | 1099478-00-A | |
| 5 | BK | 0.5 | SN | Z18-+GDD11-L | DELPHI 12129373 | | 1099478-00-A | |
| 6 | BU/WH | 0.5 | SN | X429-10 | DELPHI 12129373 | | 1099478-00-A | |
| 7 | OG/BK | 0.5 | SN | Z55-KWL01-R | DELPHI 12129373 | | 1099478-00-A | |
| 9 | GN | 0.5 | SN | X773-5 | DELPHI 12129373 | | 1099478-00-A | |
| 14 | BU | 0.5 | SN | X429-20 | DELPHI 12129373 | | 1099478-00-A | |
| 16 | RD | 0.5 | SN | Z1-+PRM13_B-R | DELPHI 12129373 | | 1099478-00-A | |
