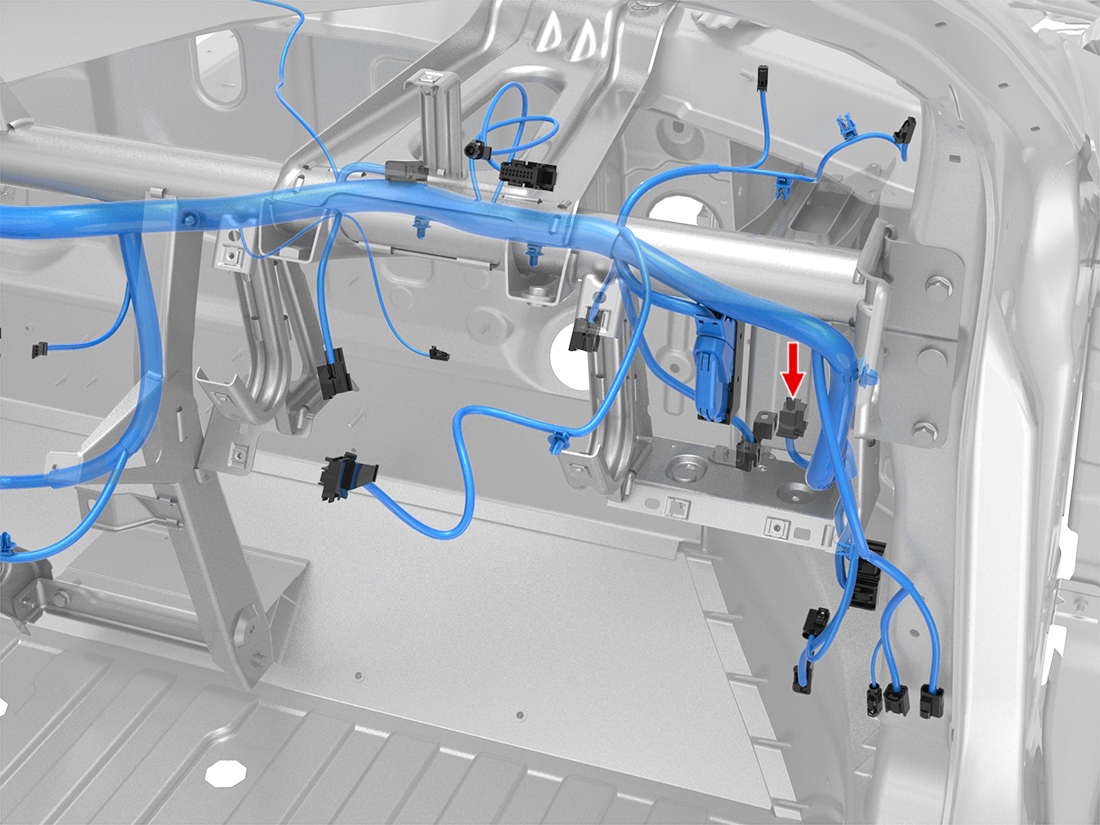

Connector Detail: MOLEX 34729-0160
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 0.35 | SN | X576-14 | MOLEX 34803-3211 | | 1099524-00-A | |
| 5 | SI | 0.35 | SN | X430-9 | MOLEX 34803-3211 | | 1099524-00-A | |
| 6 | GY | 0.35 | SN | X430-20 | MOLEX 34803-3211 | | 1099524-00-A | |
| 7 | GY/WH | 0.35 | SN | X430-10 | MOLEX 34803-3211 | | 1099524-00-A | |
| 8 | BK | 0.5 | SN | Z53-GDD16-L | MOLEX 34803-3212 | | 1099525-00-C | |
| 10 | BN/WH | 0.35 | SN | X773-21 | MOLEX 34803-3211 | | 1099524-00-A | |
| 11 | BN | 0.35 | SN | X773-10 | MOLEX 34803-3211 | | 1099524-00-A | |
| 13 | SI | 0.35 | SN | X430-19 | MOLEX 34803-3211 | | 1099524-00-A | |
| 14 | GN | 0.35 | SN | X430-18 | MOLEX 34803-3211 | | 1099524-00-A | |
| 15 | GN/WH | 0.35 | SN | X430-8 | MOLEX 34803-3211 | | 1099524-00-A | |
| 16 | BK | 0.5 | SN | Z53-GDD16-L | MOLEX 34803-3212 | | 1099525-00-C | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 0.35 | SN | X576-14 | MOLEX 34803-3211 | | 1099524-00-A | |
| 5 | SI | 0.35 | SN | X430-9 | MOLEX 34803-3211 | | 1099524-00-A | |
| 6 | GY | 0.35 | SN | X430-20 | MOLEX 34803-3211 | | 1099524-00-A | |
| 7 | GY/WH | 0.35 | SN | X430-10 | MOLEX 34803-3211 | | 1099524-00-A | |
| 8 | BK | 0.5 | SN | Z53-GDD16-L | MOLEX 34803-3212 | | 1099525-00-C | |
| 10 | BN/WH | 0.35 | SN | X773-21 | MOLEX 34803-3211 | | 1099524-00-A | |
| 11 | BN | 0.35 | SN | X773-10 | MOLEX 34803-3211 | | 1099524-00-A | |
| 13 | SI | 0.35 | SN | X430-19 | MOLEX 34803-3211 | | 1099524-00-A | |
| 14 | GN | 0.35 | SN | X430-18 | MOLEX 34803-3211 | | 1099524-00-A | |
| 15 | GN/WH | 0.35 | SN | X430-8 | MOLEX 34803-3211 | | 1099524-00-A | |
| 16 | BK | 0.5 | SN | Z53-GDD16-L | MOLEX 34803-3212 | | 1099525-00-C | |
