X501 - s-rhd-sop11

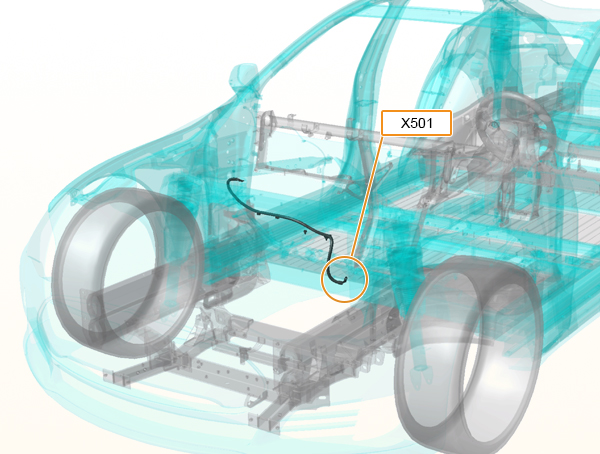

Location:
Connector Detail: CPT KCRT1322-0202AA
Color: SN
Serviceability: Not Serviceable
Cavity
Color
Size
Plate
Destination
Terminal
1
RD/GY
32
SN
X543-1
-
Cavity
Color
Size
Plate
Destination
Terminal
1
RD/GY
32
SN
X543-1
-
