X523 - s-rhd-sop11

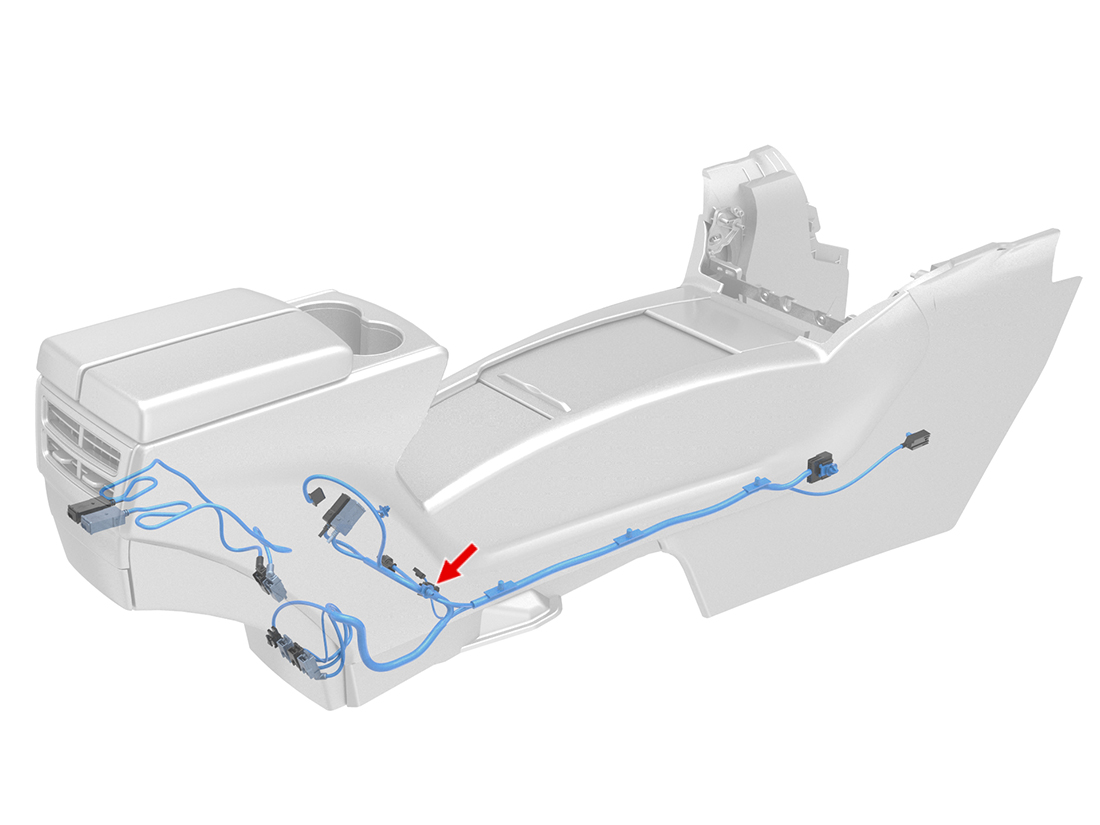

Location:
Connector Detail: YAZAKI 7283-6445-40
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 1 | SN | X982M-18 | YAZAKI 7116-4271-02 | 1099563-00-A | ||
| 2 | RD | 1 | SN | X982M-11 | YAZAKI 7116-4271-02 | 1099563-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | 1 | SN | X982M-18 | YAZAKI 7116-4271-02 | 1099563-00-A | ||
| 2 | RD | 1 | SN | X982M-11 | YAZAKI 7116-4271-02 | 1099563-00-A |
