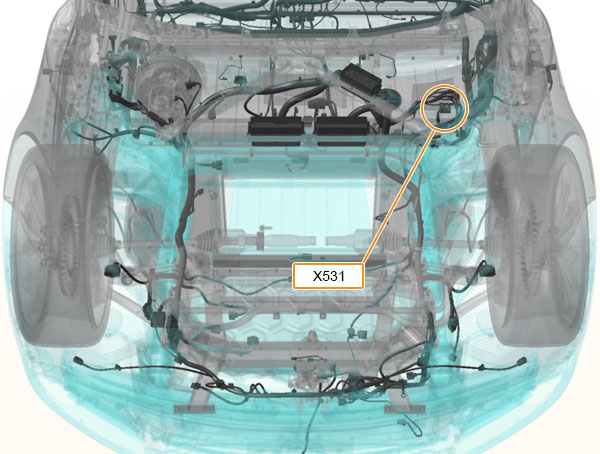

X531 - s-rhd-sop11
Location:
Connector Detail: DELPHI 12146999
Color: SN
Serviceability: Not Serviceable
Cavity
Color
Size
Plate
Destination
Terminal
1
RD
16
SN
X508-1
-
Cavity
Color
Size
Plate
Destination
Terminal
1
RD
16
SN
X508-1
-
