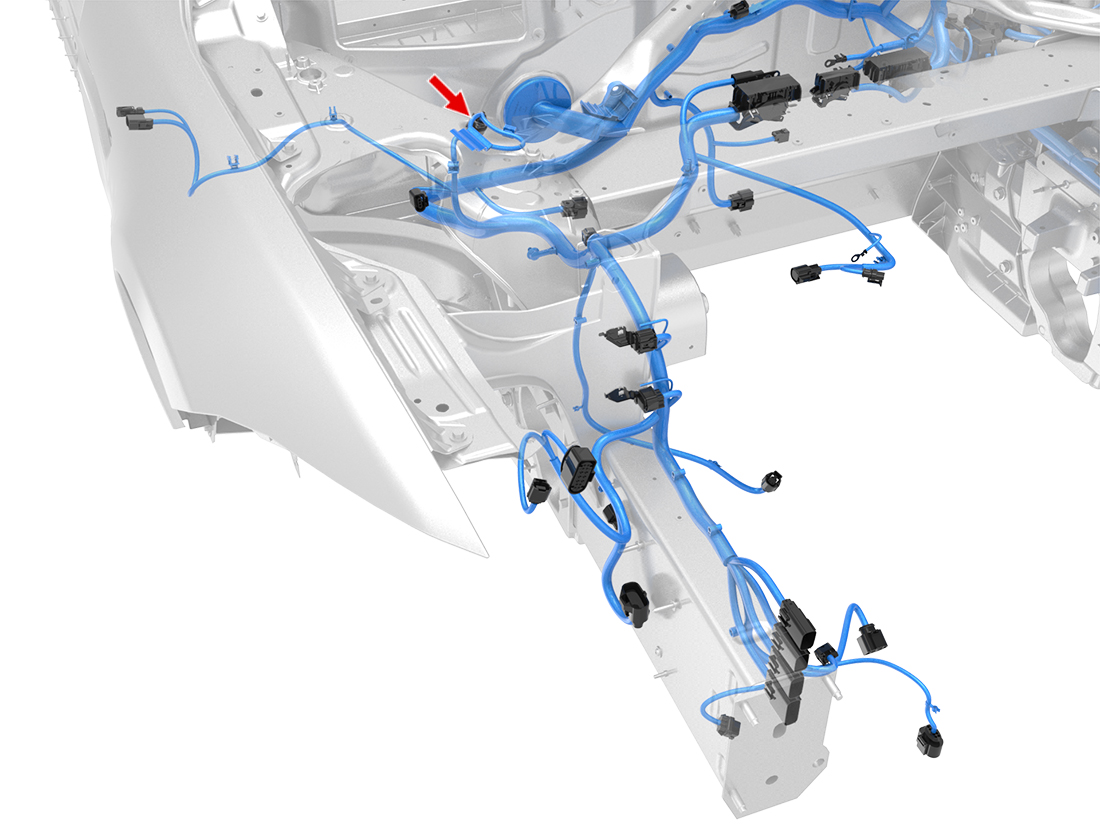

Connector Detail: MOLEX 33482-3618
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.75 | SN | X562-18 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 2 | GN | 0.75 | SN | X563-16 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 3 | RD | 0.75 | SN | X581-11 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 4 | GN | 0.75 | SN | X953F-14 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.75 | SN | X562-18 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 2 | GN | 0.75 | SN | X563-16 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 3 | RD | 0.75 | SN | X581-11 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 4 | GN | 0.75 | SN | X953F-14 | MOLEX 33000-0002 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
