2012-2020 Model S Connector Reference
Skip to main content
X548 - s-rhd-sop11

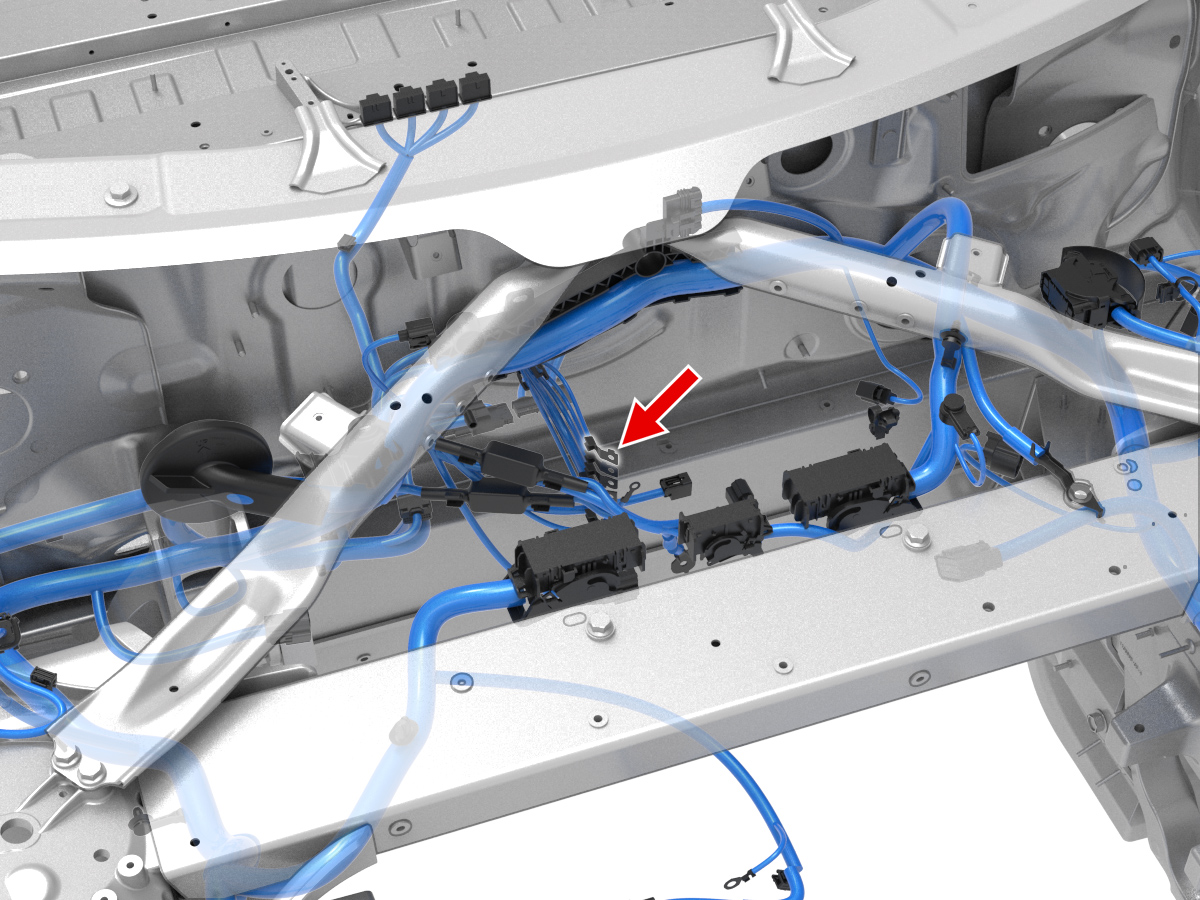

Location:
Connector Detail: CPT KCRT1319-0202AA
Color: SN
Serviceability: Not Serviceable
Cavity
Color
Size
Plate
Destination
Terminal
1
RD/BU
4
SN
X190A-1
-
Cavity
Color
Size
Plate
Destination
Terminal
1
RD/BU
4
SN
X190A-1
-
