2012-2020 Model S Connector Reference
Skip to main content
X551 - s-rhd-sop11

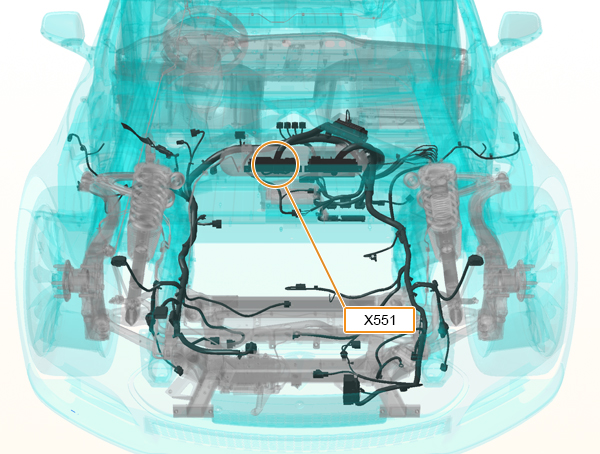

Location:
Connector Detail: CPT KCRT1315-0202AA
Color: SN
Serviceability: Not Serviceable
Cavity
Color
Size
Plate
Destination
Terminal
1
RD/BK
16
SN
X168-1
-
Cavity
Color
Size
Plate
Destination
Terminal
1
RD/BK
16
SN
X168-1
-
