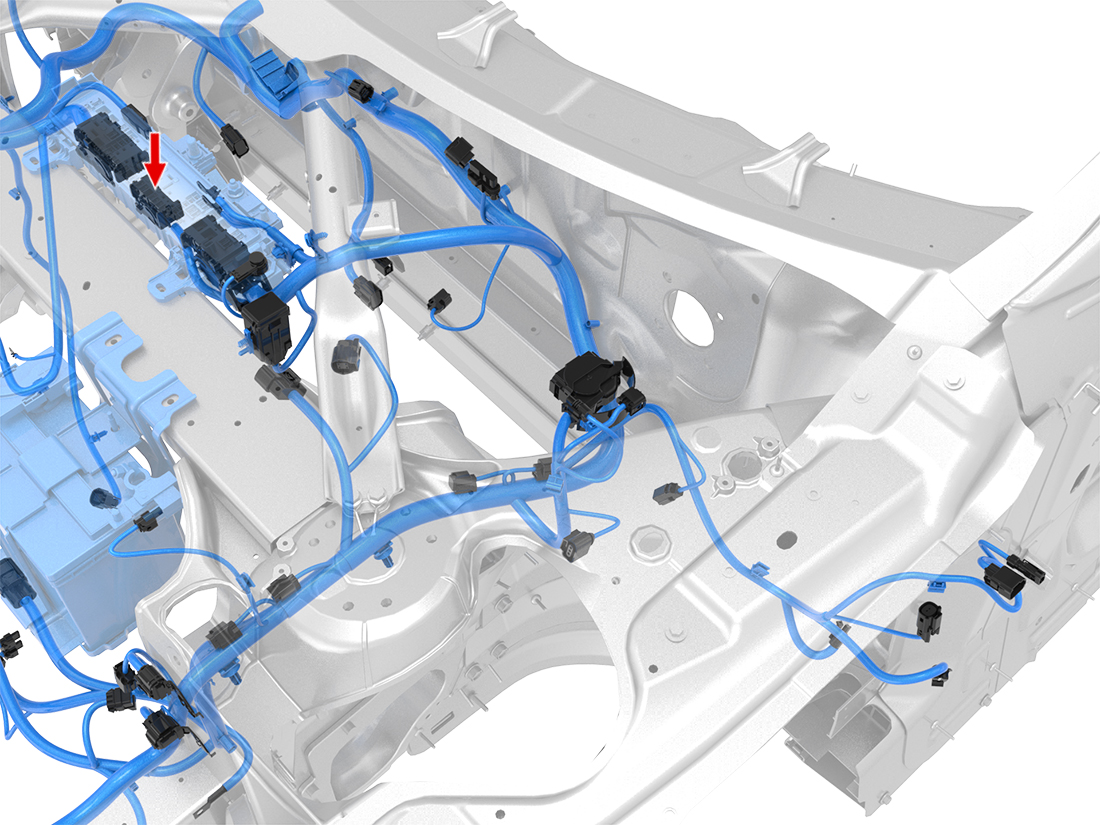

Connector Detail: DELPHI 15547108
Color:
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BK | 0.75 | SN | X581-8 | DELPHI 35063086 | | 1099490-00-A | |
| 6 | RD/WH | 1 | SN | X027-6 | DELPHI 35031566 | | 1102098-00-B | |
| 7 | RD/BU | 0.5 | SN | X050-1 | DELPHI 35063087 | | 1102099-00-B | |
| 8 | RD/BU | 0.5 | SN | X050-11 | DELPHI 35031567 | | 1102098-00-B | |
| 9 | RD/WH | 0.5 | SN | X581-2 | DELPHI 35031567 | | 1102098-00-B | |
| 11 | RD/GN | 2 | SN | X953F-1 | DELPHI 35063084 | | 1102101-00-B | |
| 12 | RD/WH | 0.5 | SN | Z8-+PDR07_A-R | DELPHI 35031567 | | 1102098-00-B | |
| 13 | RD/WH | 0.35 | SN | X050-2 | DELPHI 35031567 | | 1102098-00-B | |
| 14 | RD/WH | 0.35 | SN | X581-16 | DELPHI 35063087 | | 1102099-00-B | |
| 16 | RD/BU | 0.5 | SN | X581-5 | DELPHI 35031567 | | 1102098-00-B | |
| 18 | RD | 0.75 | SN | X535-1 | DELPHI 35031566 | | 1102098-00-B | |
| 19 | RD/VT | 0.35 | SN | X581-3 | DELPHI 35031567 | | 1102098-00-B | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/BK | 0.75 | SN | X581-8 | DELPHI 35063086 | | 1099490-00-A | |
| 6 | RD/WH | 1 | SN | X027-6 | DELPHI 35031566 | | 1102098-00-B | |
| 7 | RD/BU | 0.5 | SN | X050-1 | DELPHI 35063087 | | 1102099-00-B | |
| 8 | RD/BU | 0.5 | SN | X050-11 | DELPHI 35031567 | | 1102098-00-B | |
| 9 | RD/WH | 0.5 | SN | X581-2 | DELPHI 35031567 | | 1102098-00-B | |
| 11 | RD/GN | 2 | SN | X953F-1 | DELPHI 35063084 | | 1102101-00-B | |
| 12 | RD/WH | 0.5 | SN | Z8-+PDR07_A-L | DELPHI 35031567 | | 1102098-00-B | |
| 13 | RD/WH | 0.35 | SN | X050-2 | DELPHI 35031567 | | 1102098-00-B | |
| 14 | RD/WH | 0.35 | SN | X581-16 | DELPHI 35063087 | | 1102099-00-B | |
| 16 | RD/BU | 0.5 | SN | X581-5 | DELPHI 35031567 | | 1102098-00-B | |
| 18 | RD | 0.75 | SN | X535-1 | DELPHI 35031566 | | 1102098-00-B | |
| 19 | RD/VT | 0.35 | SN | X581-3 | DELPHI 35031567 | | 1102098-00-B | |
