X574 - s-rhd-sop11

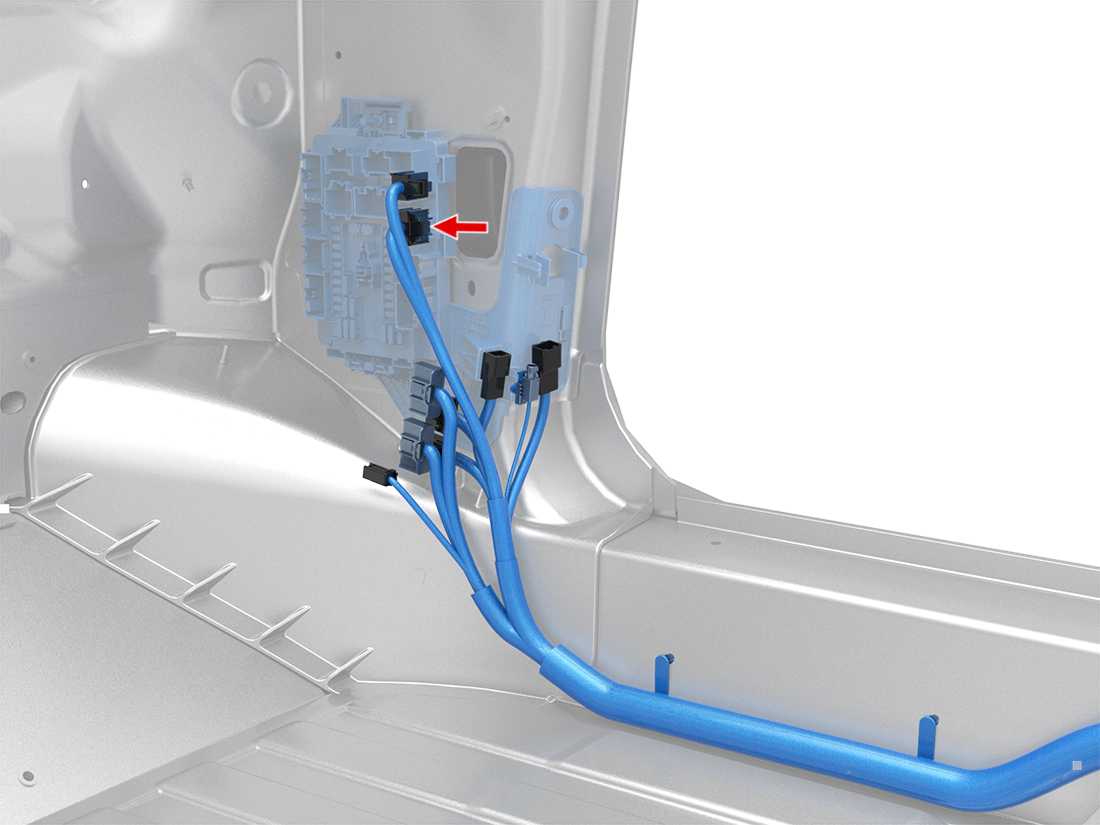

Location:
Connector Detail: DELPHI 13544532
Color: Green
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/WH | 2 | SN | X101-9 | DELPHI 13544537 | 1099486-00-A | ||
| 6 | GY | 2 | SN | X397-8 | DELPHI 13544537 | 1099486-00-A | ||
| 7 | RD/GN | 1.5 | SN | X946M-1 | DELPHI 13544537 | 1099486-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/WH | 2 | SN | X101-9 | DELPHI 13544537 | 1099486-00-A | ||
| 6 | GY | 2 | SN | X397-8 | DELPHI 13544537 | 1099486-00-A | ||
| 7 | RD/GN | 1.5 | SN | X946M-1 | DELPHI 13544537 | 1099486-00-A |
