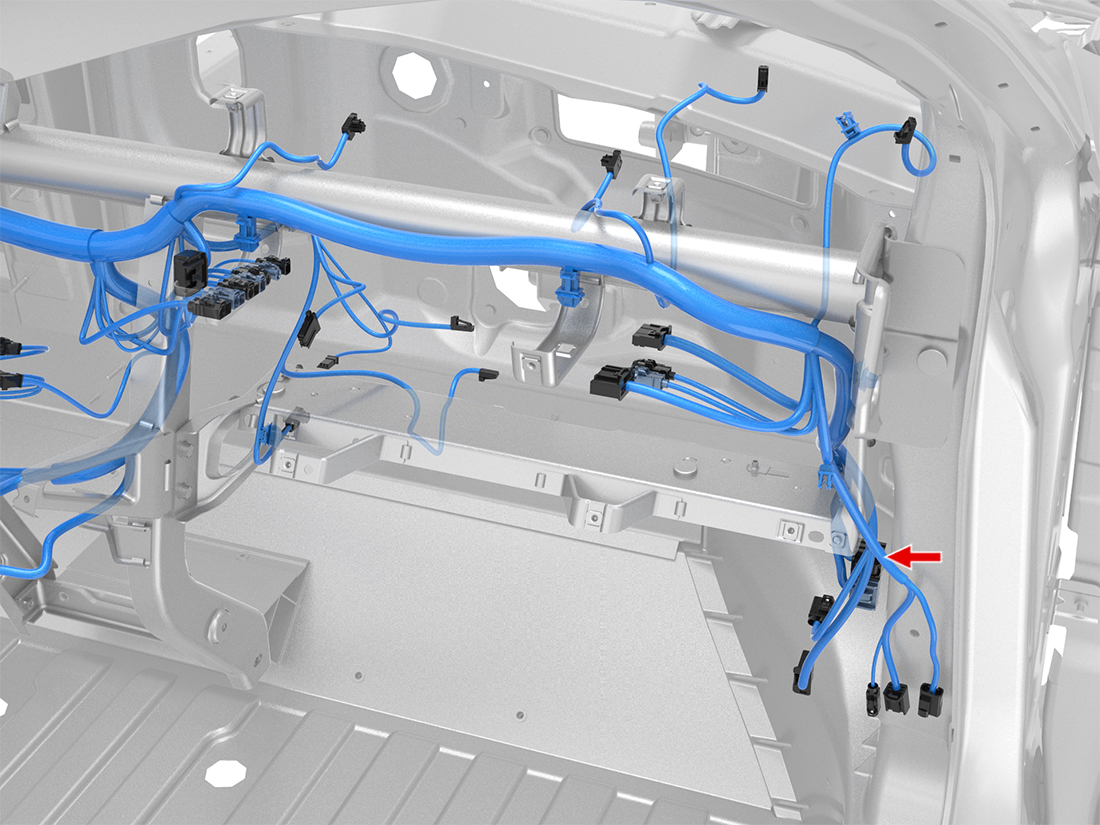

Connector Detail: DELPHI 13799638
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | RD/BK | 0.5 | SN | X426-7 | DELPHI 13544535 | | 1099482-00-A | |
| 5 | BU | 2 | SN | X149-9 | DELPHI 13544537 | | 1099486-00-A | |
| 6 | RD/GN | 1.5 | SN | X425-7 | DELPHI 13544537 | | 1099486-00-A | |
| 7 | RD | 0.5 | SN | X160-6 | DELPHI 13544535 | | 1099482-00-A | |
| 8 | RD/WH | 1.5 | SN | X423-1 | DELPHI 13544537 | | 1099486-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | RD/BK | 0.5 | SN | X426-7 | DELPHI 13544535 | | 1099482-00-A | |
| 5 | BU | 2 | SN | X149-9 | DELPHI 13544537 | | 1099486-00-A | |
| 6 | RD/GN | 1.5 | SN | X425-7 | DELPHI 13544537 | | 1099486-00-A | |
| 7 | RD | 0.5 | SN | X160-6 | DELPHI 13544535 | | 1099482-00-A | |
| 8 | RD/WH | 1.5 | SN | X423-1 | DELPHI 13544537 | | 1099486-00-A | |
