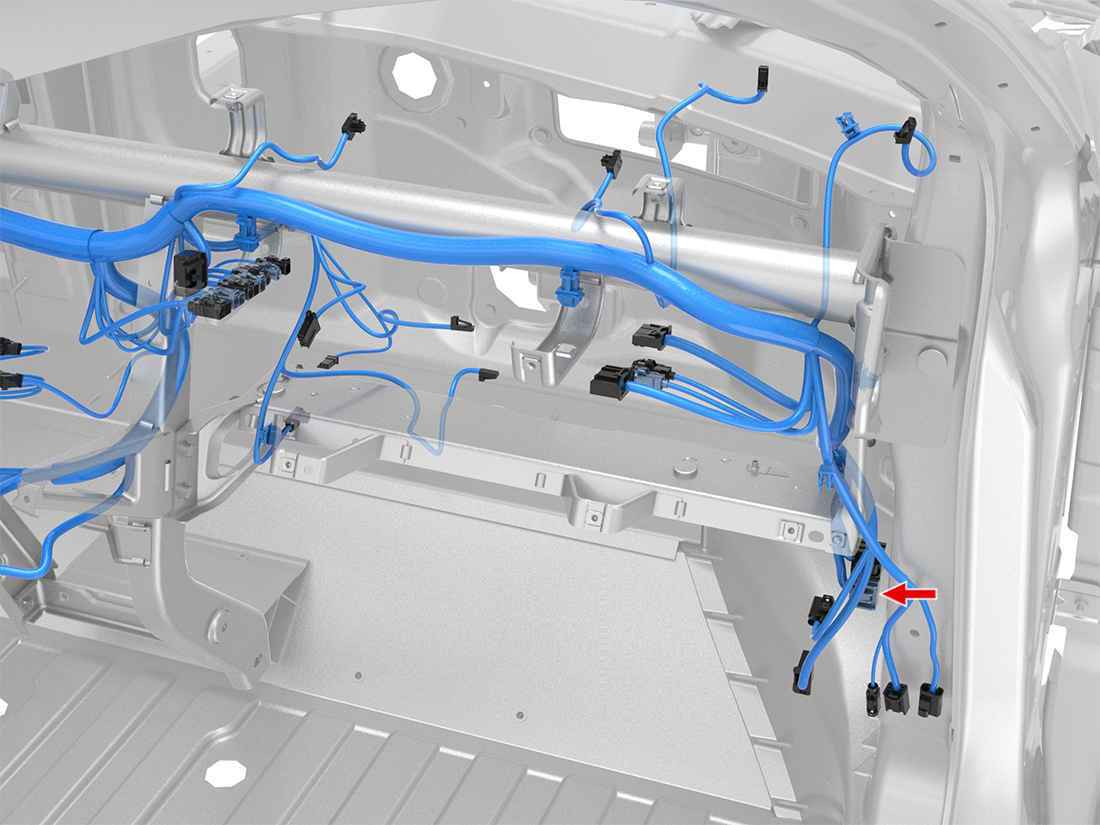

Connector Detail: DELPHI 13520383
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN/WH | 0.35 | SN | X429-13 | DELPHI 13526680 | | 1099481-00-A | |
| 2 | GN/RD | 0.35 | SN | X968M-17 | DELPHI 13526680 | | 1099481-00-A | |
| 3 | RD/BK | 0.35 | SN | X968M-16 | DELPHI 13526680 | | 1099481-00-A | |
| 4 | RD/WH | 0.5 | SN | X430-12 | DELPHI 13526680 | | 1099481-00-A | |
| 5 | GY | 0.35 | SN | X492-3 | DELPHI 13526680 | | 1099481-00-A | |
| 6 | RD/BU | 0.35 | SN | X968M-7 | DELPHI 13526680 | | 1099481-00-A | |
| 7 | RD/VT | 0.35 | SN | X434-17 | DELPHI 13526680 | | 1099481-00-A | |
| 8 | RD/VT | 0.35 | SN | X958F-1 | DELPHI 13526680 | | 1099481-00-A | |
| 9 | WH/BU | 0.35 | SN | X430-13 | DELPHI 13526680 | | 1099481-00-A | |
| 10 | BU/WH | 0.35 | SN | X281-1 | DELPHI 13526680 | | 1099481-00-A | |
| 11 | BU/WH | 0.35 | SN | X280-1 | DELPHI 13526680 | | 1099481-00-A | |
| 12 | BU/WH | 0.35 | SN | X429-1 | DELPHI 13526680 | | 1099481-00-A | |
| 13 | RD | 0.5 | SN | Z1-+PRM13_B-L | DELPHI 13526680 | | 1099481-00-A | |
| 14 | RD/GN | 0.35 | SN | X439-1 | DELPHI 13526680 | | 1099481-00-A | |
| 14 | RD/GN | 0.35 | SN | X440-1 | DELPHI 13526680 | | 1099481-00-A | |
| 15 | BU | 0.35 | SN | X430-3 | DELPHI 13526680 | | 1099481-00-A | |
| 16 | RD/GY | 0.35 | SN | X160-4 | DELPHI 13526680 | | 1099481-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BN/WH | 0.35 | SN | X429-13 | DELPHI 13526680 | | 1099481-00-A | |
| 2 | GN/RD | 0.35 | SN | X968M-17 | DELPHI 13526680 | | 1099481-00-A | |
| 3 | RD/BK | 0.35 | SN | X968M-16 | DELPHI 13526680 | | 1099481-00-A | |
| 4 | RD/WH | 0.5 | SN | X430-12 | DELPHI 13526680 | | 1099481-00-A | |
| 5 | GY | 0.35 | SN | X492-3 | DELPHI 13526680 | | 1099481-00-A | |
| 6 | RD/BU | 0.35 | SN | X968M-7 | DELPHI 13526680 | | 1099481-00-A | |
| 7 | RD/VT | 0.35 | SN | X434-17 | DELPHI 13526680 | | 1099481-00-A | |
| 8 | RD/VT | 0.35 | SN | X958F-1 | DELPHI 13526680 | | 1099481-00-A | |
| 9 | WH/BU | 0.35 | SN | X430-13 | DELPHI 13526680 | | 1099481-00-A | |
| 10 | BU/WH | 0.35 | SN | X281-1 | DELPHI 13526680 | | 1099481-00-A | |
| 11 | BU/WH | 0.35 | SN | X280-1 | DELPHI 13526680 | | 1099481-00-A | |
| 12 | BU/WH | 0.35 | SN | X429-1 | DELPHI 13526680 | | 1099481-00-A | |
| 13 | RD | 0.5 | SN | Z1-+PRM13_B-R | DELPHI 13526680 | | 1099481-00-A | |
| 14 | RD/GN | 0.35 | SN | X439-1 | DELPHI 13526680 | | 1099481-00-A | |
| 14 | RD/GN | 0.35 | SN | X440-1 | DELPHI 13526680 | | 1099481-00-A | |
| 15 | BU | 0.35 | SN | X430-3 | DELPHI 13526680 | | 1099481-00-A | |
| 16 | RD/GY | 0.35 | SN | X160-4 | DELPHI 13526680 | | 1099481-00-A | |
