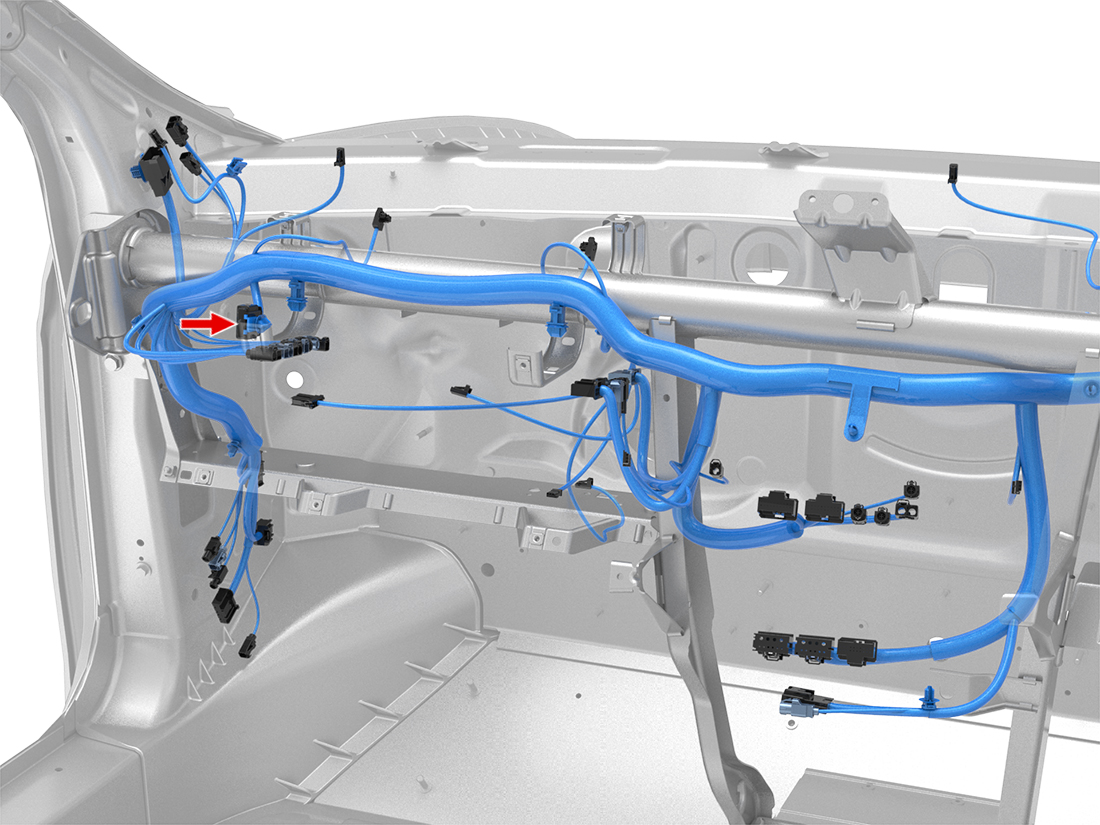

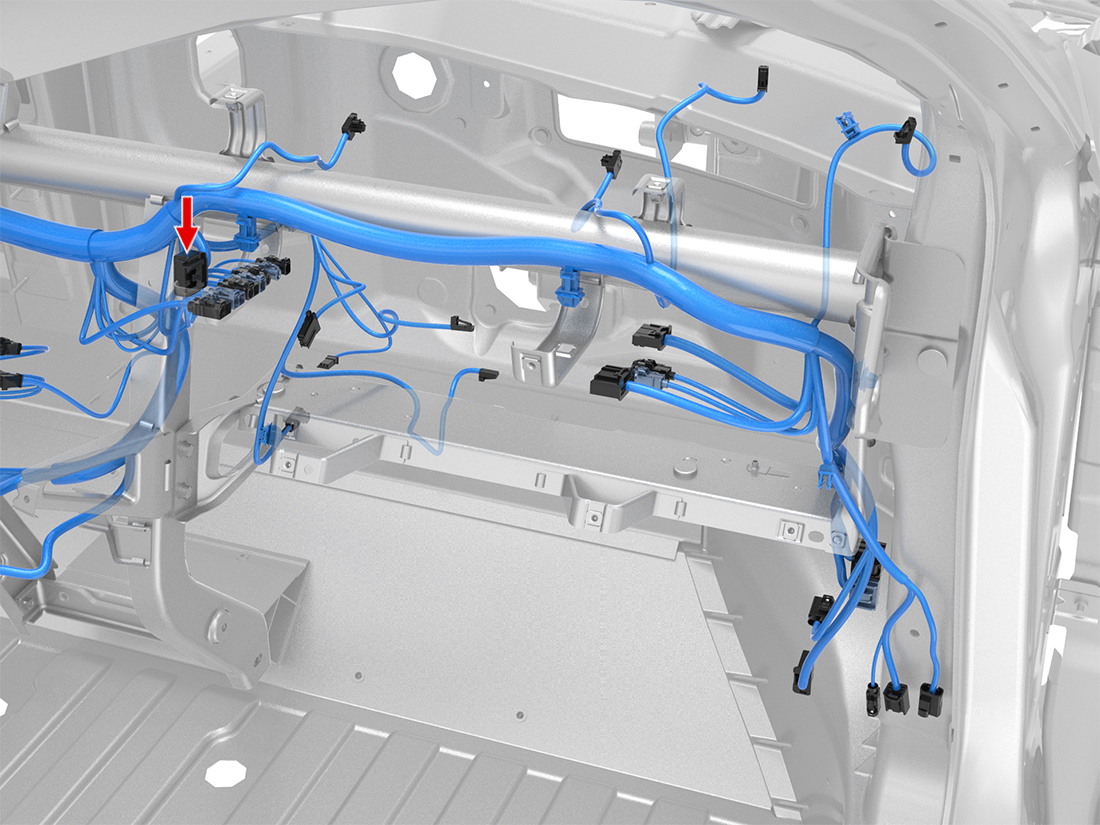

Connector Detail: SUMITOMO 6098-3927
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | X437A-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 2 | GN/WH | 0.35 | SN | X429-5 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 3 | GN/WH | 0.35 | SN | X773-17 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X150-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | VT/WH | 0.35 | SN | X429-7 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | VT/WH | 0.35 | SN | X437A-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | VT/WH | 0.35 | SN | X949F-7 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | RD/WH | 0.35 | SN | X437A-18 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | RD/WH | 0.35 | SN | X429-8 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | RD/WH | 0.35 | SN | X150-11 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X958F-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 12 | GN | 0.35 | SN | X437A-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 13 | GN | 0.35 | SN | X429-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | GN | 0.35 | SN | X773-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | GN | 0.35 | SN | X150-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | VT | 0.35 | SN | X429-17 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | VT | 0.35 | SN | X437A-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 18 | VT | 0.35 | SN | X949F-8 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 19 | RD | 0.35 | SN | X437A-19 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | RD | 0.35 | SN | X429-18 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 21 | RD | 0.35 | SN | X150-12 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 22 | RD | 0.35 | SN | X958F-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | X437A-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 2 | GN/WH | 0.35 | SN | X429-5 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 3 | GN/WH | 0.35 | SN | X773-17 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X150-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | VT/WH | 0.35 | SN | X429-7 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | VT/WH | 0.35 | SN | X437A-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | VT/WH | 0.35 | SN | X949F-7 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | RD/WH | 0.35 | SN | X437A-18 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | RD/WH | 0.35 | SN | X429-8 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | RD/WH | 0.35 | SN | X150-11 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X958F-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 12 | GN | 0.35 | SN | X437A-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 13 | GN | 0.35 | SN | X429-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | GN | 0.35 | SN | X773-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | GN | 0.35 | SN | X150-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | VT | 0.35 | SN | X429-17 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | VT | 0.35 | SN | X437A-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 18 | VT | 0.35 | SN | X949F-8 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 19 | RD | 0.35 | SN | X437A-19 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | RD | 0.35 | SN | X429-18 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 21 | RD | 0.35 | SN | X150-12 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 22 | RD | 0.35 | SN | X958F-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
