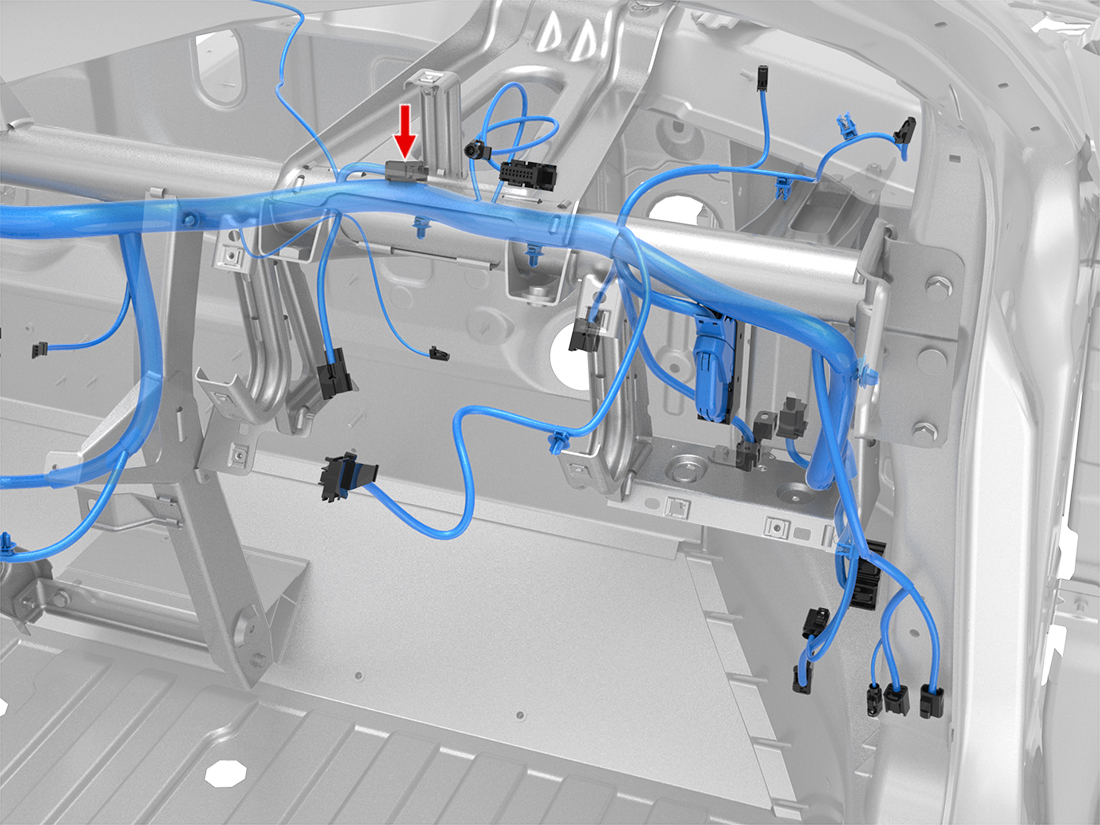

Connector Detail: SUMITOMO 6098-3926
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | GN | 0.35 | SN | X958F-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 3 | GN | 0.35 | SN | X434-7 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | GN | 0.35 | SN | X160-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | GN | 0.5 | SN | X436-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | GN | 0.35 | SN | X772-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | BN | 0.35 | SN | X429-19 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | BN | 0.35 | SN | X949F-21 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | BN | 0.35 | SN | X437A-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | BN | 0.35 | SN | X440-11 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 13 | GN/WH | 0.35 | SN | X958F-8 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | GN/WH | 0.35 | SN | X434-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | GN/WH | 0.35 | SN | X160-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | GN/WH | 0.5 | SN | X436-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | GN/WH | 0.35 | SN | X772-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 18 | BN/WH | 0.35 | SN | X429-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 19 | BN/WH | 0.35 | SN | X949F-20 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | BN/WH | 0.35 | SN | X437A-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 21 | BN/WH | 0.35 | SN | X440-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | GN | 0.35 | SN | X958F-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 3 | GN | 0.35 | SN | X434-7 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | GN | 0.35 | SN | X160-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | GN | 0.5 | SN | X436-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | GN | 0.35 | SN | X772-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | BN | 0.35 | SN | X429-19 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | BN | 0.35 | SN | X949F-21 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | BN | 0.35 | SN | X437A-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | BN | 0.35 | SN | X440-11 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 13 | GN/WH | 0.35 | SN | X958F-8 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | GN/WH | 0.35 | SN | X434-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | GN/WH | 0.35 | SN | X160-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | GN/WH | 0.5 | SN | X436-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | GN/WH | 0.35 | SN | X772-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 18 | BN/WH | 0.35 | SN | X429-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 19 | BN/WH | 0.35 | SN | X949F-20 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | BN/WH | 0.35 | SN | X437A-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 21 | BN/WH | 0.35 | SN | X440-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
