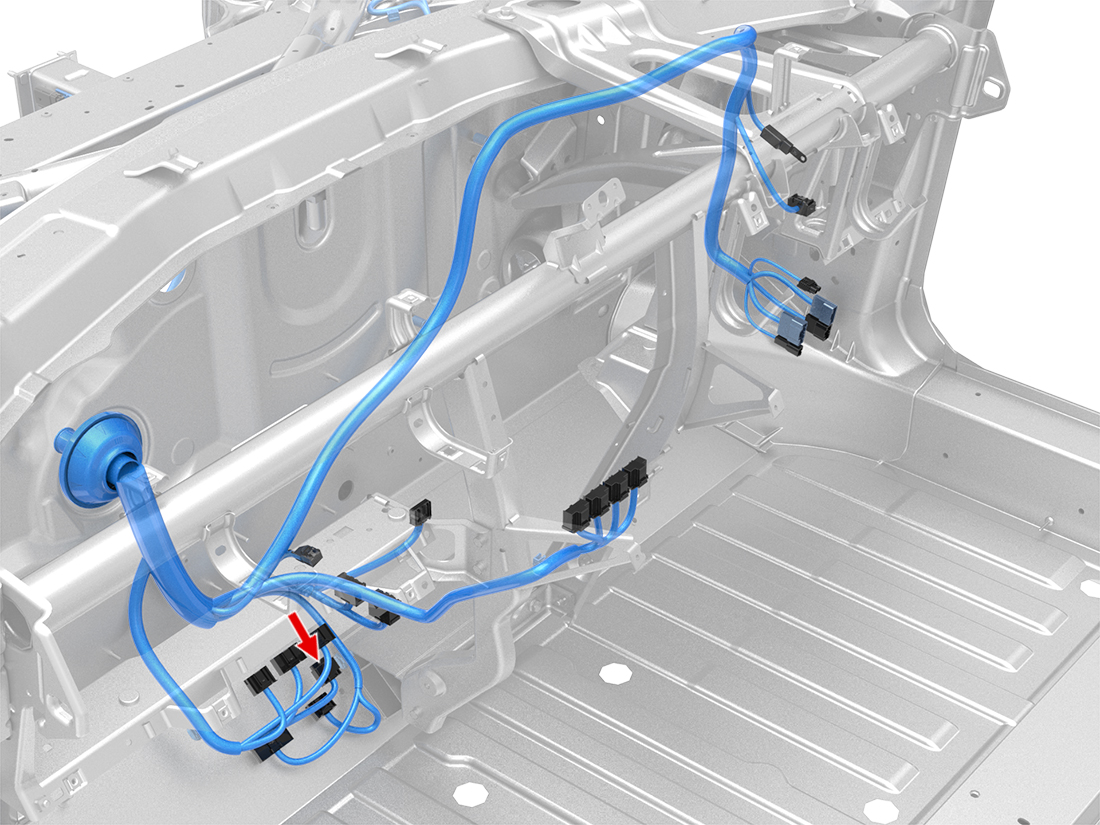

Connector Detail: SUMITOMO 6098-3927
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | X176-23 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 1 | GN/WH | 0.35 | SN | X180A-28 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 2 | GN/WH | 0.35 | SN | Z14-+CNC09-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X955F-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | RD/BK | 0.35 | SN | X953F-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | RD/BK | 0.35 | SN | X540-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | RD/BK | 0.35 | SN | X041-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | RD/WH | 0.35 | SN | Z12-+CNP05-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | RD/WH | 0.35 | SN | X051-11 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | RD/WH | 0.35 | SN | X977M-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X041-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 12 | GN | 0.35 | SN | X176-24 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 12 | GN | 0.35 | SN | X180A-29 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 13 | GN | 0.35 | SN | Z15-+CNC10-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | GN | 0.35 | SN | X955F-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 19 | RD | 0.35 | SN | Z13-+CNP06-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | RD | 0.35 | SN | X051-12 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 21 | RD | 0.35 | SN | X977M-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 22 | RD | 0.35 | SN | X041-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GN/WH | 0.35 | SN | X176-23 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 1 | GN/WH | 0.35 | SN | X180A-28 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 2 | GN/WH | 0.35 | SN | Z14-+CNC09-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | GN/WH | 0.35 | SN | X955F-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | RD/BK | 0.35 | SN | X953F-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | RD/BK | 0.35 | SN | X540-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | RD/BK | 0.35 | SN | X041-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | RD/WH | 0.35 | SN | Z12-+CNP05-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | RD/WH | 0.35 | SN | X051-11 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | RD/WH | 0.35 | SN | X977M-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 11 | RD/WH | 0.35 | SN | X041-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 12 | GN | 0.35 | SN | X176-24 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 12 | GN | 0.35 | SN | X180A-29 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 13 | GN | 0.35 | SN | Z15-+CNC10-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | GN | 0.35 | SN | X955F-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 19 | RD | 0.35 | SN | Z13-+CNP06-L | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | RD | 0.35 | SN | X051-12 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 21 | RD | 0.35 | SN | X977M-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 22 | RD | 0.35 | SN | X041-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
