X801A - s-rhd-sop11

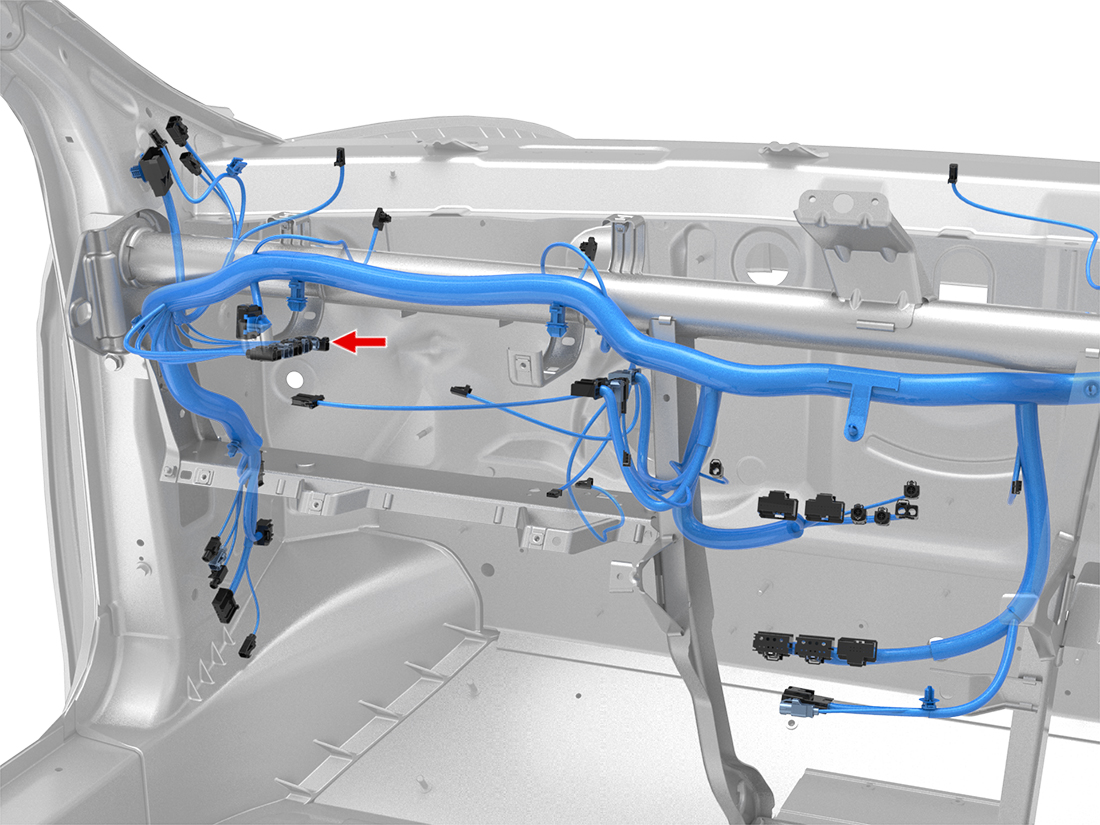

Location:

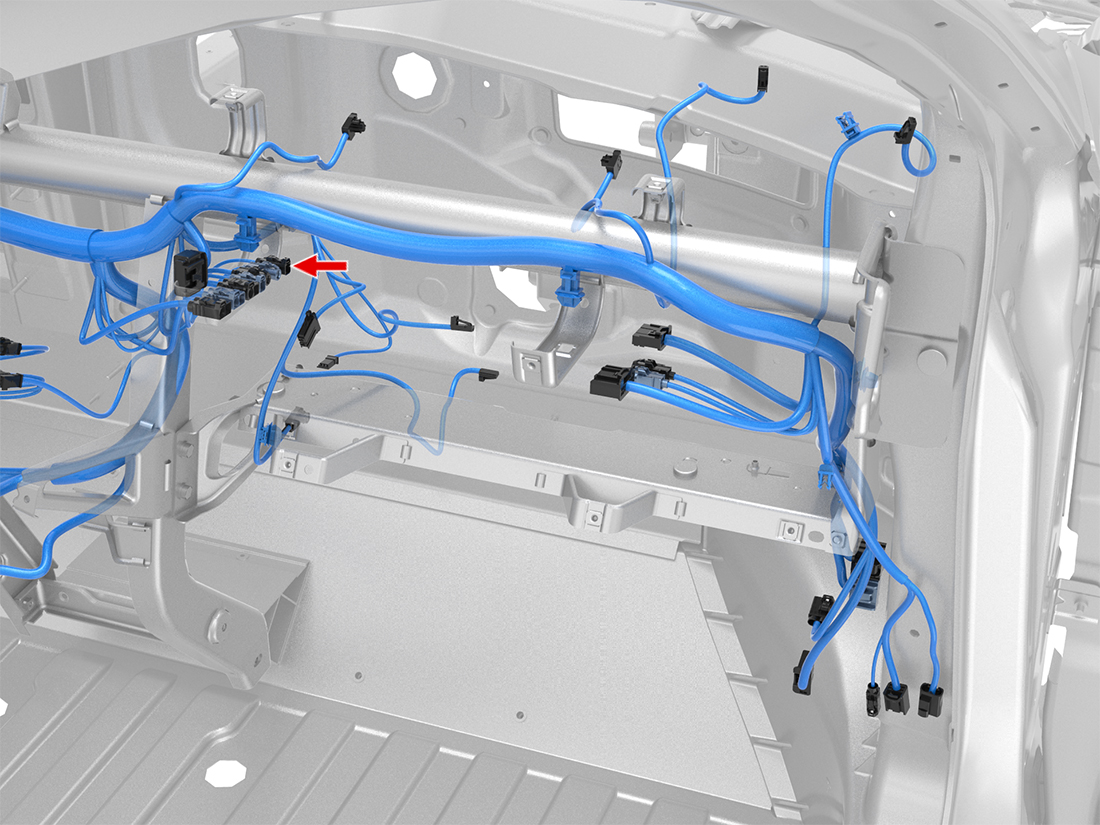

Location:
Connector Detail: ROSENBERGER 59Z113-000-C
Color: BU
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X808F-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X808F-1 | - | - | - |
