X808M - s-rhd-sop11

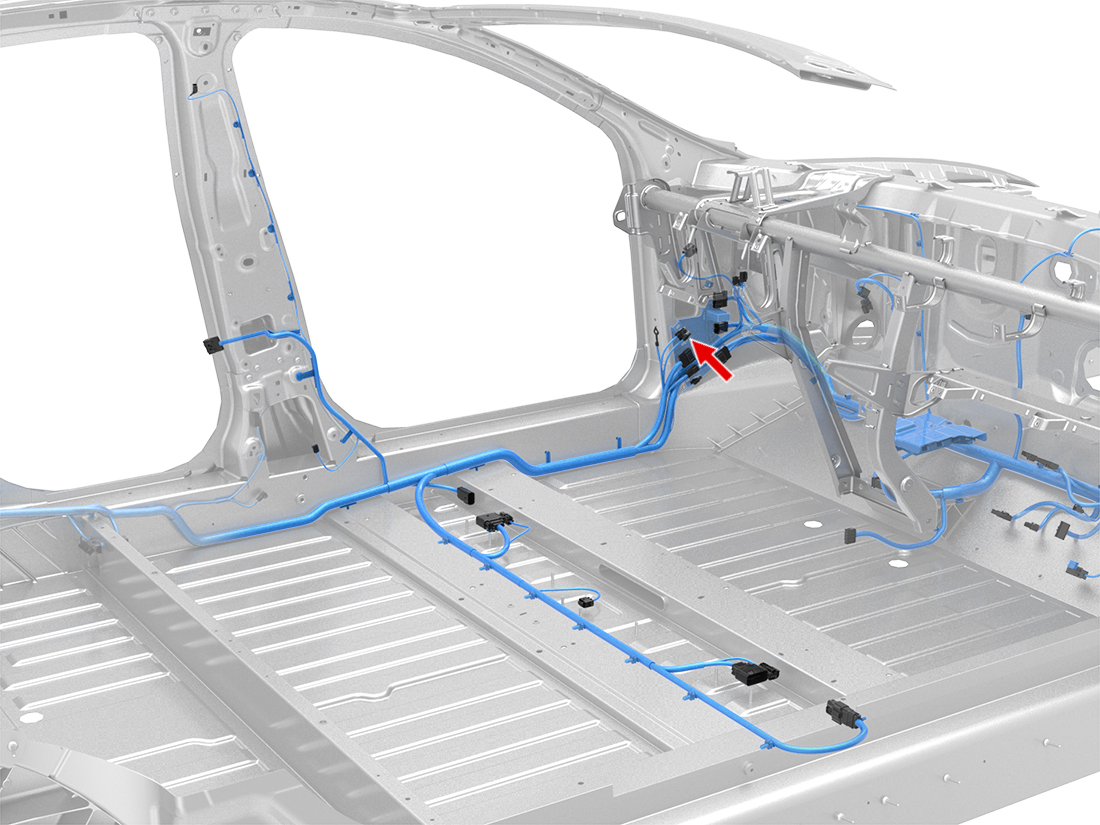

Location:
Connector Detail: ROSENBERGER 59Z074-C00-C
Color: BU
Serviceability: Cable Subassembly
Connector Detail: ROSENBERGER 59Z118-C00-C
Color: BU
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X824F-2 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X824F-2 | - | - | - |
