X826F - s-rhd-sop11

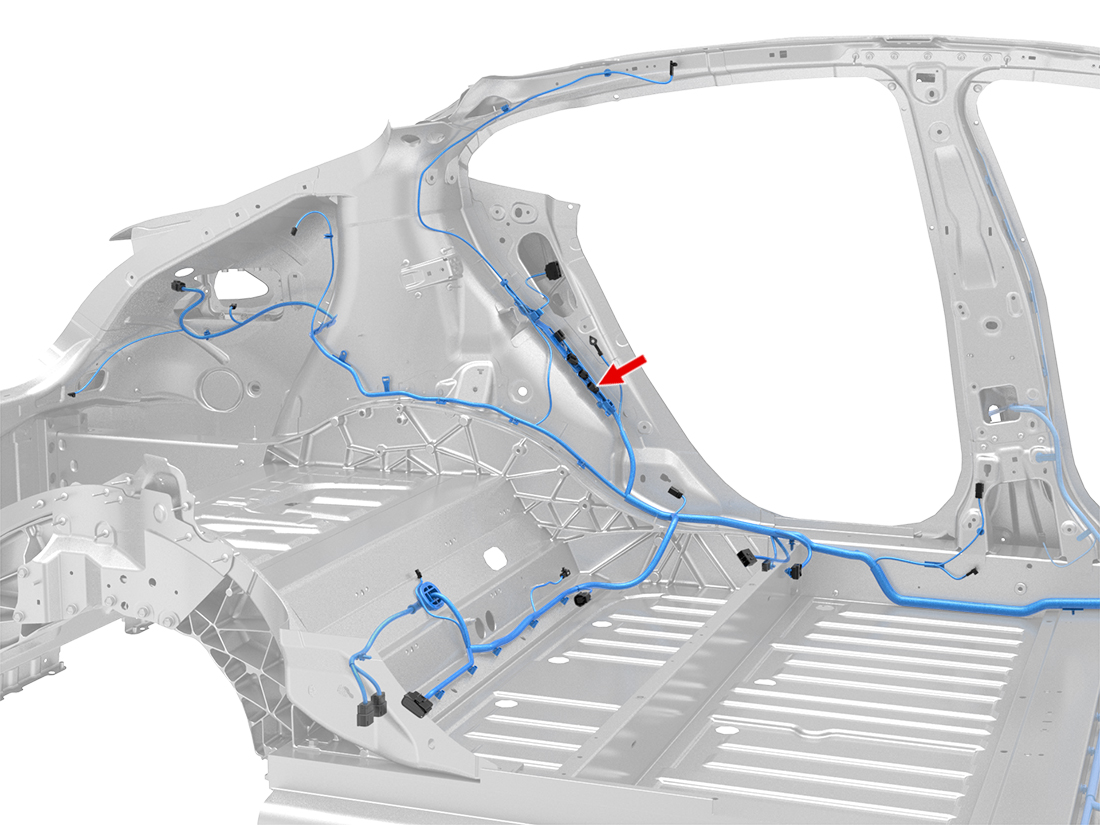

Location:
Connector Detail: ROSENBERGER D4Z001-000-C
Color: BU
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| H | BK | HSD | AU | X828-H | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| H | BK | HSD | AU | X828-H | - | - | - |
