X846M - s-rhd-sop11

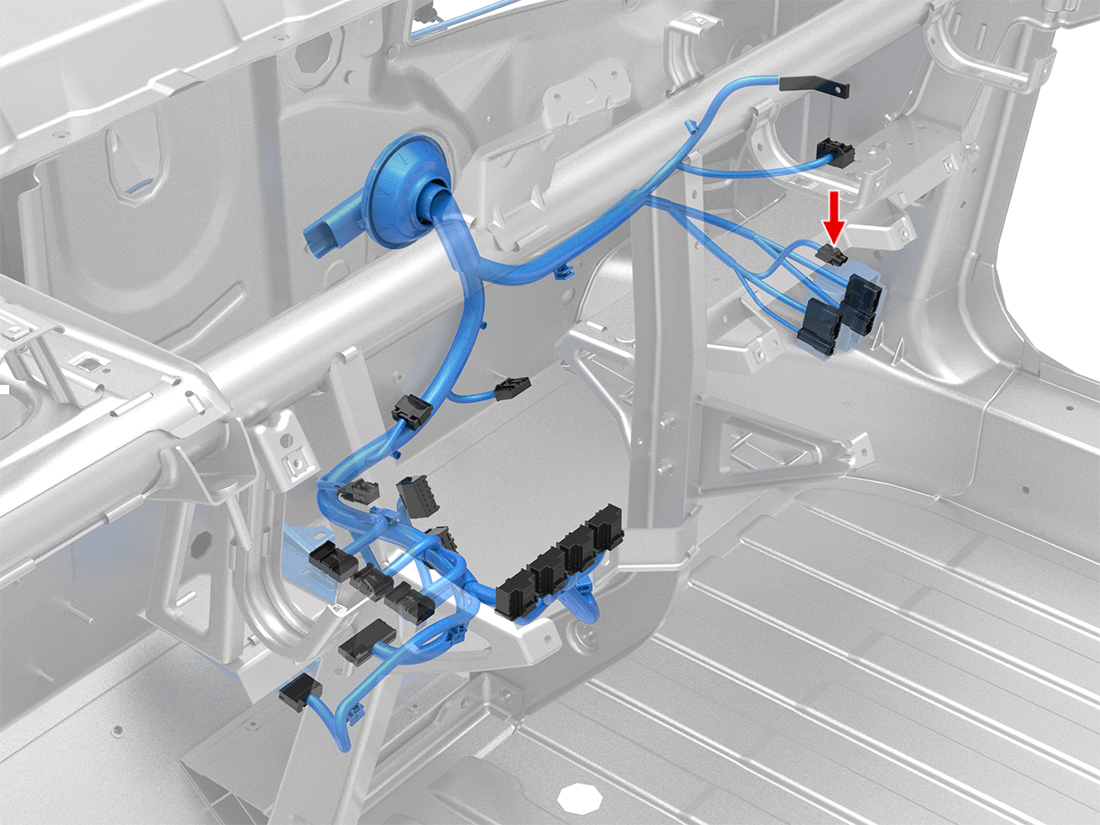

Location:
Connector Detail: ROSENBERGER 59Z120-C00-F
Color: BN
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X845-1 | - | - | - | |
| 2 | BK | D302 | AU | X844-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X845-1 | - | - | - | |
| 2 | BK | D302 | AU | X844-1 | - | - | - |
