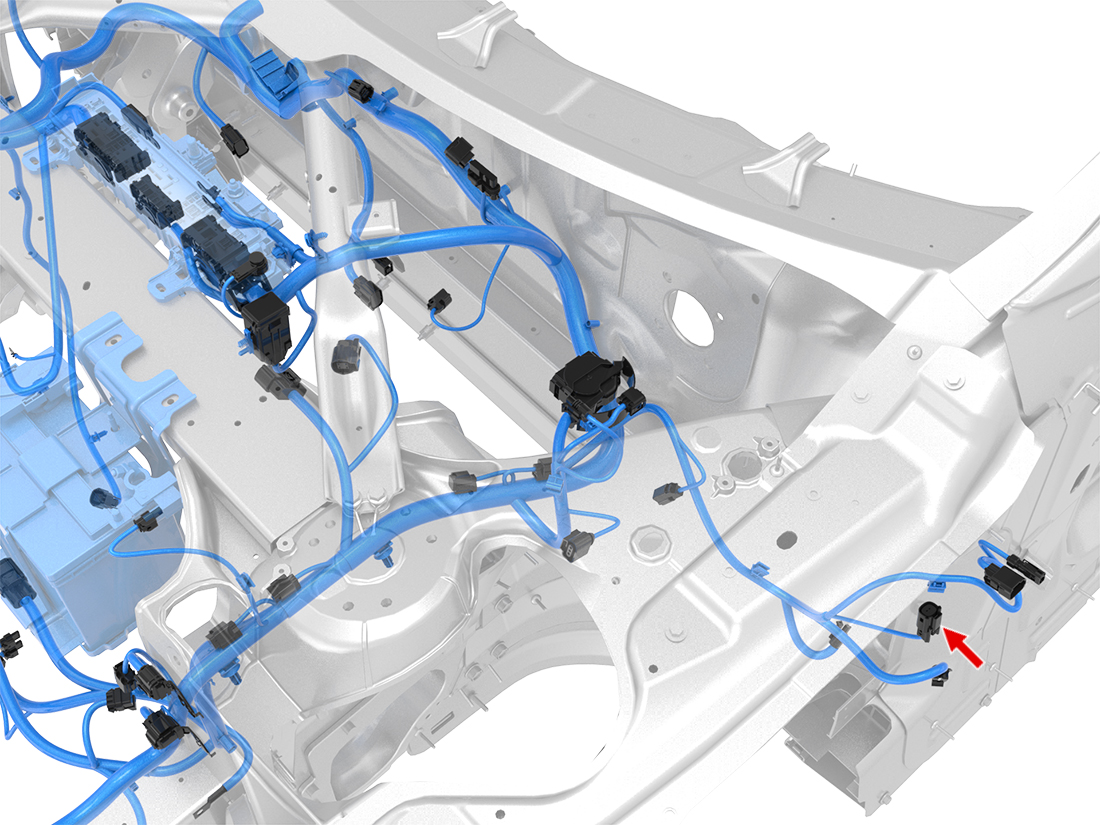

Connector Detail: MOLEX 33471-0201
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.5 | SN | X955F-10 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | BK | 0.5 | SN | G500-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT | 0.5 | SN | X955F-10 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 2 | BK | 0.5 | SN | G500-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
