X930F - s-rhd-sop11

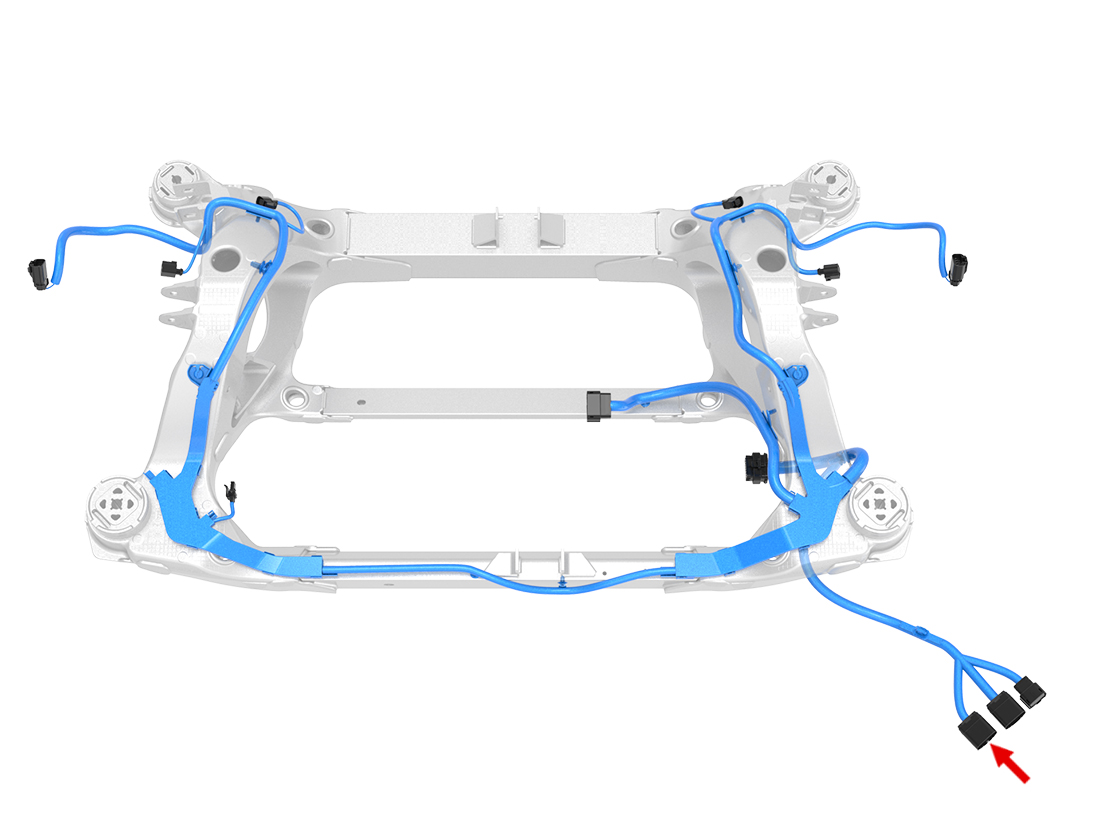

Location:

Connector Detail: FCI 55251400

Color: BK

Serviceability: Terminal Pigtail

CavityColorSizePlateDestinationTerminalSealService PartDepinning Tool
1GY2 X103-4
1GY2 X103A-1
2WH0.75SNX103-2FCI 54001625TESLA MAT-140-2401102109-00-B
3OG0.5SNX198-1FCI 54002000TESLA MAT-140-2401102109-00-B
4OG/BK0.5SNX198-2FCI 54002000TESLA MAT-140-2401102109-00-B
6BU/WH0.75SNX104-2FCI 54001625TESLA MAT-140-2401102109-00-B
7RD/WH2 X104-4
7RD/WH2 X104A-1
8BK/WH2 X103-1
8BK/WH2 X103A-2
9OG0.75SNX103-3FCI 54001625TESLA MAT-140-2401102109-00-B
10BU0.5SNX199-1FCI 54002000TESLA MAT-140-2401102109-00-B
11RD/BU0.5SNX199-2FCI 54002000TESLA MAT-140-2401102109-00-B
13VT/WH0.75SNX104-3FCI 54001625TESLA MAT-140-2401102109-00-B
14RD/VT2 X104-1
14RD/VT2 X104A-2
CavityColorSizePlateDestinationTerminalSealService PartDepinning Tool
1GY2 X103-4
1GY2 X103A-1
2WH0.75SNX103-2FCI 54001625TESLA MAT-140-2401102109-00-B
3OG0.5SNX198-1FCI 54002000TESLA MAT-140-2401102109-00-B
4OG/BK0.5SNX198-2FCI 54002000TESLA MAT-140-2401102109-00-B
6BU/WH0.75SNX104-2FCI 54001625TESLA MAT-140-2401102109-00-B
7RD/WH2 X104-4
7RD/WH2 X104A-1
8BK/WH2 X103-1
8BK/WH2 X103A-2
9OG0.75SNX103-3FCI 54001625TESLA MAT-140-2401102109-00-B
10BU0.5SNX199-1FCI 54002000TESLA MAT-140-2401102109-00-B
11RD/BU0.5SNX199-2FCI 54002000TESLA MAT-140-2401102109-00-B
13VT/WH0.75SNX104-3FCI 54001625TESLA MAT-140-2401102109-00-B
14RD/VT2 X104-1
14RD/VT2 X104A-2
