X932F - s-rhd-sop11

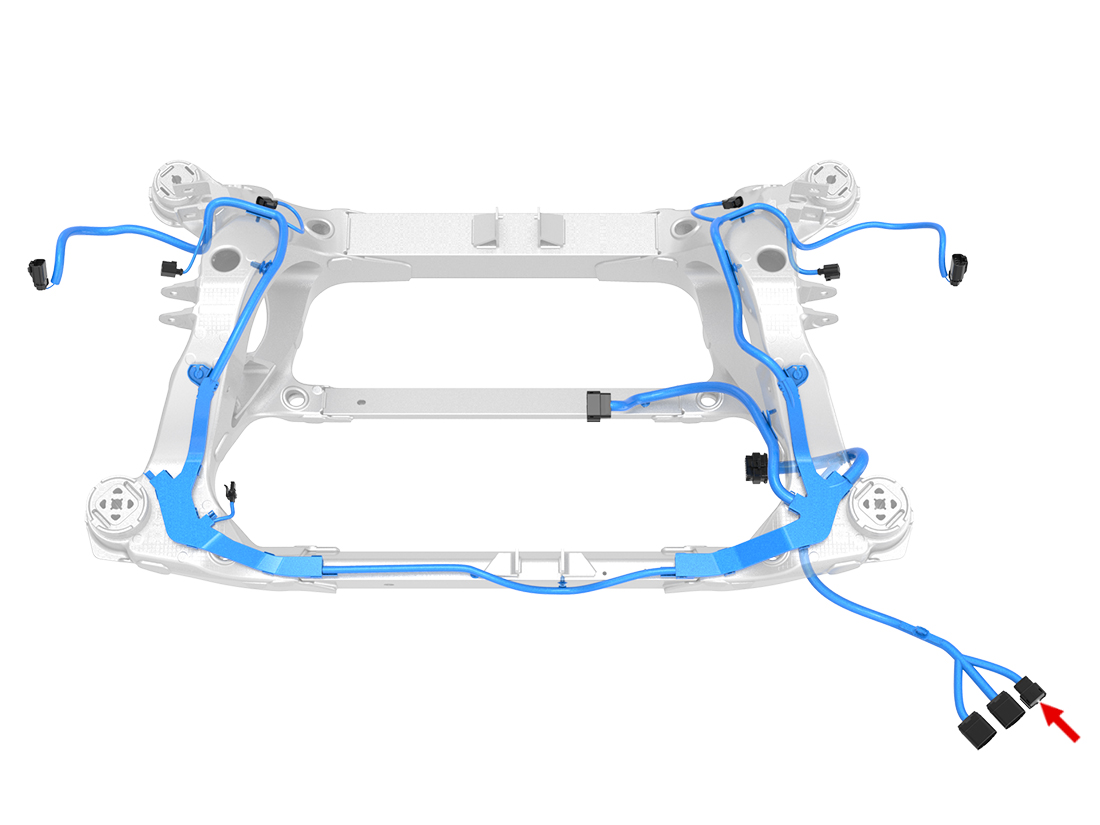

Location:

Connector Detail: MOLEX 33472-2002

Color: Gray

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal	Seal	Service Part	Depinning Tool
1	RD/WH	0.75	SN	X250-4	MOLEX 33012-3002	TESLA MAT-120-240	1099515-00-A	1116485-00-A
1	RD/WH	0.5		X251-2
2	RD/GN	0.35	SN	X184-3	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
3	VT	0.35	SN	X184-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
4	BK	0.35	SN	X184-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
5	VT	0.35	SN	X194A-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
6	BN	0.35	SN	X194A-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
7	GN	0.35	SN	X194B-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
8	BU	0.35	SN	X194B-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
9	GN/WH	0.5	SN	X113-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
10	GN	0.5	SN	X113-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
11	RD	0.75	SN	X250-5	MOLEX 33012-3002	TESLA MAT-120-240	1099515-00-A	1116485-00-A
11	RD	0.5		X251-1
12	RD/VT	0.35	SN	X185-3	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
13	BN	0.35	SN	X185-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
14	GY/WH	0.35	SN	X185-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
15	VT/WH	0.35	SN	X195A-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
16	BN/WH	0.35	SN	X195A-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
17	GN/WH	0.35	SN	X195B-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
18	BU/WH	0.35	SN	X195B-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
19	BK/WH	0.5	SN	X114-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
20	WH	0.5	SN	X114-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A

Cavity	Color	Size	Plate	Destination	Terminal	Seal	Service Part	Depinning Tool
1	RD/WH	0.75	SN	X250-4	MOLEX 33012-3002	TESLA MAT-120-240	1099515-00-A	1116485-00-A
1	RD/WH	0.5		X251-2
2	RD/GN	0.35	SN	X184-3	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
3	VT	0.35	SN	X184-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
4	BK	0.35	SN	X184-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
5	VT	0.35	SN	X194A-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
6	BN	0.35	SN	X194A-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
7	GN	0.35	SN	X194B-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
8	BU	0.35	SN	X194B-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
9	GN/WH	0.5	SN	X113-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
10	GN	0.5	SN	X113-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
11	RD	0.75	SN	X250-5	MOLEX 33012-3002	TESLA MAT-120-240	1099515-00-A	1116485-00-A
11	RD	0.5		X251-1
12	RD/VT	0.35	SN	X185-3	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
13	BN	0.35	SN	X185-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
14	GY/WH	0.35	SN	X185-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
15	VT/WH	0.35	SN	X195A-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
16	BN/WH	0.35	SN	X195A-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
17	GN/WH	0.35	SN	X195B-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
18	BU/WH	0.35	SN	X195B-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
19	BK/WH	0.5	SN	X114-1	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
20	WH	0.5	SN	X114-2	MOLEX 33012-3003	TESLA MAT-120-240	1099515-00-A	1116485-00-A
