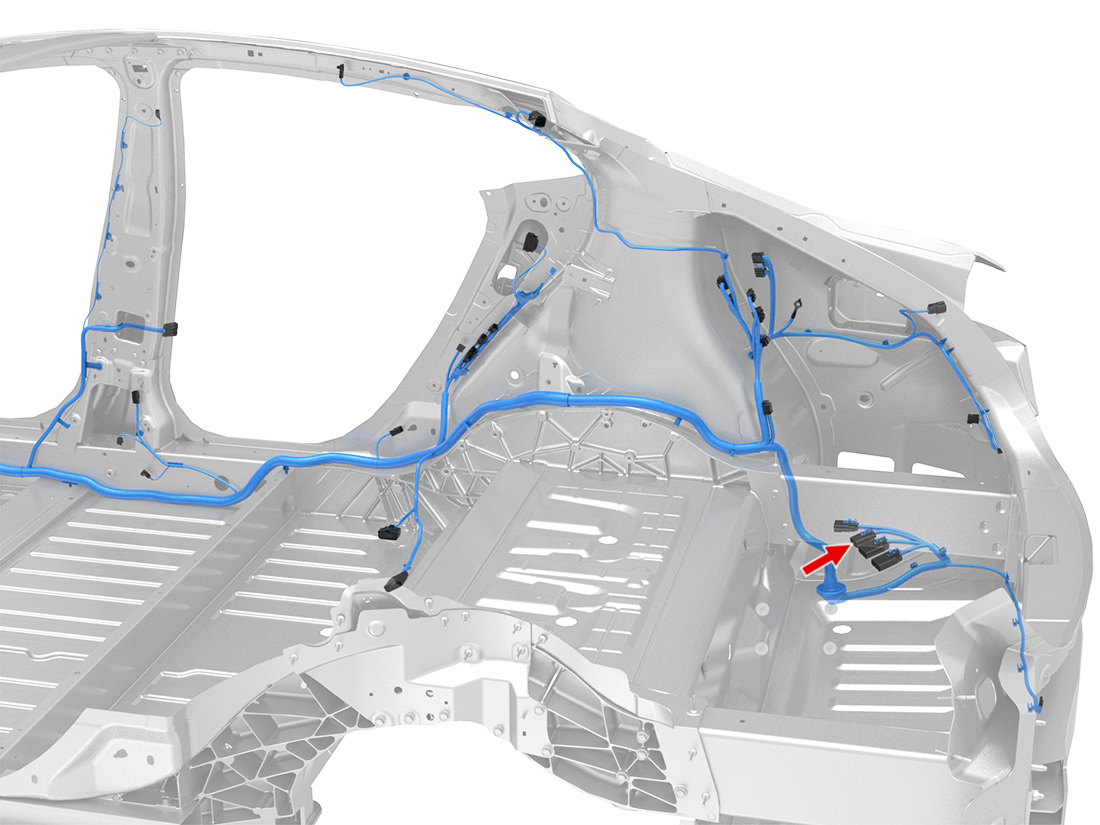

Connector Detail: MOLEX 33482-2102
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 0.5 | SN | X779-2 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 2 | RD/GN | 0.35 | SN | X971F-2 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 3 | VT | 0.35 | SN | X971F-3 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 4 | BK | 0.35 | SN | X971F-4 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 5 | VT | 0.35 | SN | X971F-5 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 6 | BN | 0.35 | SN | X971F-6 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 7 | GN | 0.35 | SN | X971F-7 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 8 | BU | 0.35 | SN | X971F-8 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 9 | GN/WH | 0.5 | SN | X971F-11 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 10 | GN | 0.5 | SN | X971F-12 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 11 | RD | 0.5 | SN | X779-13 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 12 | RD/VT | 0.35 | SN | X971F-16 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 13 | BN | 0.35 | SN | X971F-17 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 14 | GY/WH | 0.35 | SN | X971F-18 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 15 | VT/WH | 0.35 | SN | X971F-19 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 16 | BN/WH | 0.35 | SN | X971F-20 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 17 | GN/WH | 0.35 | SN | X971F-21 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 18 | BU/WH | 0.35 | SN | X971F-22 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 19 | BK/WH | 0.5 | SN | X971F-13 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 20 | WH | 0.5 | SN | X971F-25 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 0.5 | SN | X779-2 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 2 | RD/GN | 0.35 | SN | X971F-2 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 3 | VT | 0.35 | SN | X971F-3 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 4 | BK | 0.35 | SN | X971F-4 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 5 | VT | 0.35 | SN | X971F-5 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 6 | BN | 0.35 | SN | X971F-6 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 7 | GN | 0.35 | SN | X971F-7 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 8 | BU | 0.35 | SN | X971F-8 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 9 | GN/WH | 0.5 | SN | X971F-11 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 10 | GN | 0.5 | SN | X971F-12 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 11 | RD | 0.5 | SN | X779-13 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 12 | RD/VT | 0.35 | SN | X971F-16 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 13 | BN | 0.35 | SN | X971F-17 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 14 | GY/WH | 0.35 | SN | X971F-18 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 15 | VT/WH | 0.35 | SN | X971F-19 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 16 | BN/WH | 0.35 | SN | X971F-20 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 17 | GN/WH | 0.35 | SN | X971F-21 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 18 | BU/WH | 0.35 | SN | X971F-22 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 19 | BK/WH | 0.5 | SN | X971F-13 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
| 20 | WH | 0.5 | SN | X971F-25 | MOLEX 33000-0004 | TESLA MAT-120-240 | 1099509-00-A | 1116485-00-A |
