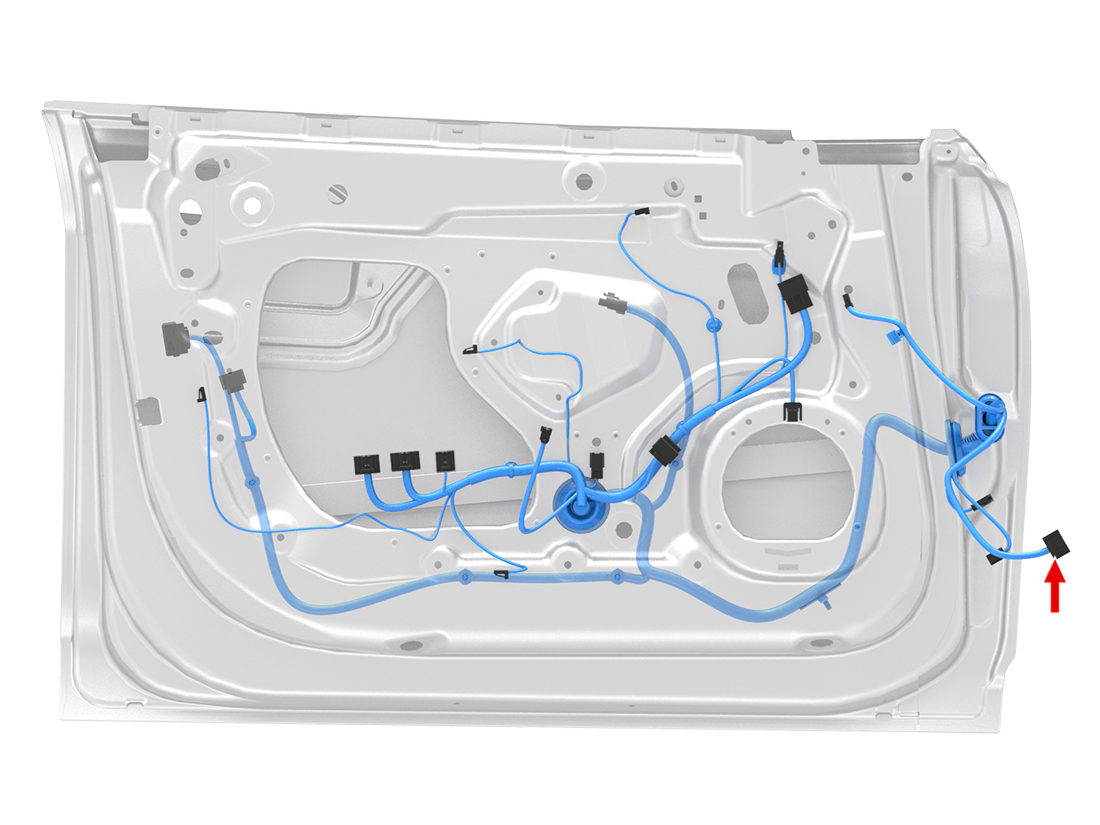

Connector Detail: SUMITOMO 6098-5609
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 1.5 | SN | X315-3 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 2 | RD | 0.5 | SN | Z78-PRM06-R | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 3 | YE/WH | 0.35 | SN | X303-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | WH | 0.35 | SN | Z2-DCL12-L | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | OG/BK | 0.5 | SN | X204-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | BN/WH | 0.35 | SN | X302-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | RD | 0.35 | SN | X301-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | OG | 0.35 | SN | X316-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | WH | 0.35 | SN | X301-14 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 10 | BU/WH | 1.5 | SN | X418-1 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 11 | BK | 2 | SN | Z36-GDD01-L | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 13 | BK | 0.35 | SN | X302-22 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | GY/WH | 0.5 | SN | X204-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | BN | 0.35 | SN | X302-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X316-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | OG | 0.35 | SN | Z5-SEC11-R | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 18 | BU | 1.5 | SN | X418-2 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 1.5 | SN | X315-3 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 2 | RD | 0.5 | SN | Z78-PRM06-R | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 3 | YE/WH | 0.35 | SN | X303-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | WH | 0.35 | SN | Z2-DCL12-L | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | OG/BK | 0.5 | SN | X204-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | BN/WH | 0.35 | SN | X302-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | RD | 0.35 | SN | X301-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | OG | 0.35 | SN | X316-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | WH | 0.35 | SN | X301-14 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 10 | BU/WH | 1.5 | SN | X418-1 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 11 | BK | 2 | SN | Z36-GDD01-L | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 13 | BK | 0.35 | SN | X302-22 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | GY/WH | 0.5 | SN | X204-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | BN | 0.35 | SN | X302-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X316-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | OG | 0.35 | SN | Z5-SEC11-R | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 18 | BU | 1.5 | SN | X418-2 | SUMITOMO 8240-0214 | | 1099540-00-A | |
