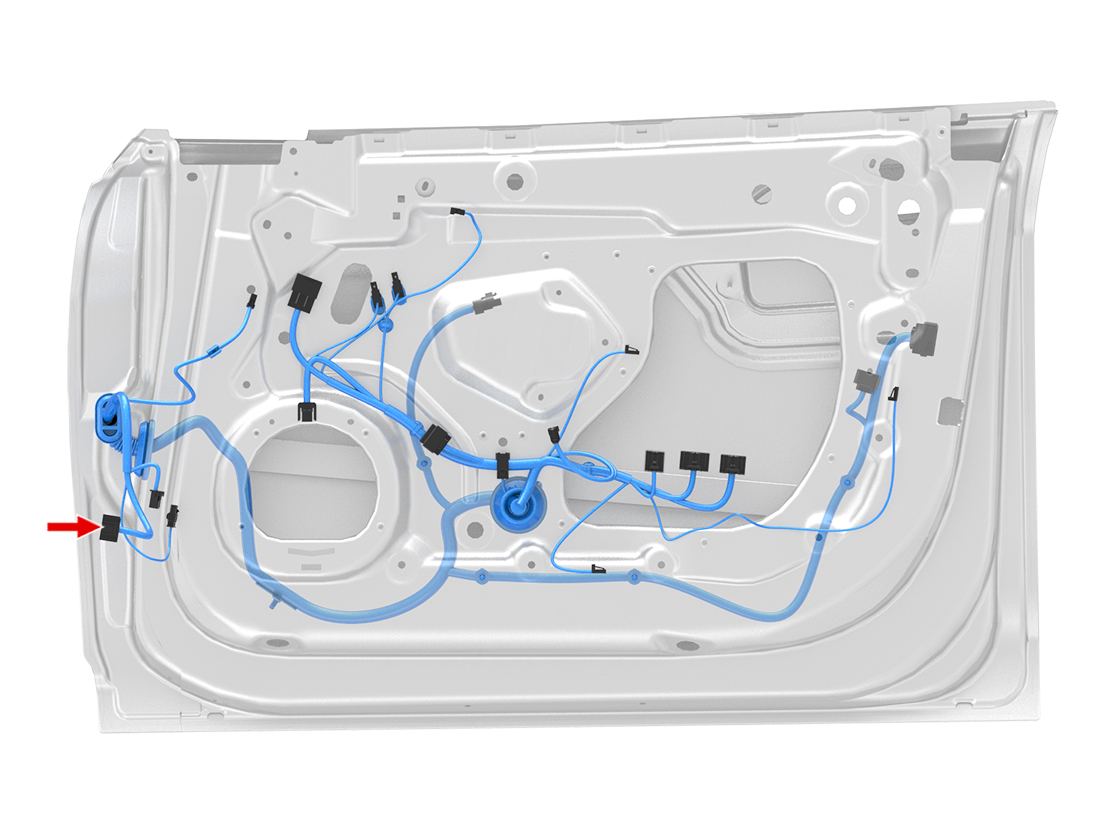

Connector Detail: SUMITOMO 6098-5609
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 1.5 | SN | X345-3 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 2 | RD | 0.5 | SN | Z72-PRM26-L | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 3 | YE/WH | 0.35 | SN | X333-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | WH | 0.35 | SN | Z8-DCR12-L | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | WH/RD | 0.5 | SN | X205-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | BN/WH | 0.35 | SN | X332-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | RD/GN | 0.35 | SN | X331-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | OG | 0.35 | SN | X346-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | GY | 0.35 | SN | X331-14 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 10 | GN/WH | 1.5 | SN | X419-1 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 11 | BK | 2 | SN | Z35-GDC09-L | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 13 | BK | 0.35 | SN | X332-22 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | WH/BU | 0.5 | SN | X205-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | BN | 0.35 | SN | X332-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X346-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | BU/WH | 0.35 | SN | Z11-SEC12-R | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 18 | GN | 1.5 | SN | X419-2 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 1.5 | SN | X345-3 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 2 | RD | 0.5 | SN | Z72-PRM26-L | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 3 | YE/WH | 0.35 | SN | X333-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | WH | 0.35 | SN | Z8-DCR12-L | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | WH/RD | 0.5 | SN | X205-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | BN/WH | 0.35 | SN | X332-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | RD/GN | 0.35 | SN | X331-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | OG | 0.35 | SN | X346-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | GY | 0.35 | SN | X331-14 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 10 | GN/WH | 1.5 | SN | X419-1 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 11 | BK | 2 | SN | Z35-GDC09-L | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 13 | BK | 0.35 | SN | X332-22 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | WH/BU | 0.5 | SN | X205-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 15 | BN | 0.35 | SN | X332-15 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X346-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | BU/WH | 0.35 | SN | Z11-SEC12-R | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 18 | GN | 1.5 | SN | X419-2 | SUMITOMO 8240-0214 | | 1099540-00-A | |
