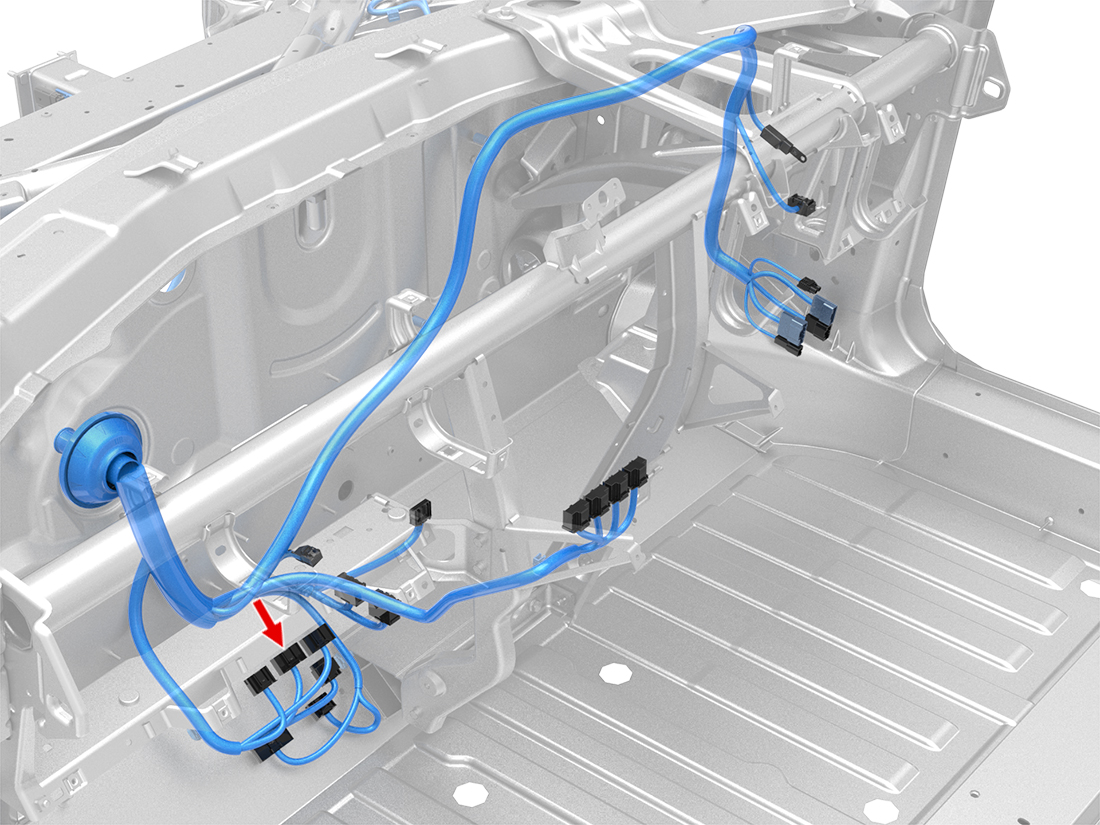

Connector Detail: YAZAKI 7287-1918
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 2 | SN | X562-11 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| 4 | RD/GN | 0.35 | SN | X563-32 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | RD/VT | 0.35 | SN | X262-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | BU | 0.35 | SN | X563-20 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 9 | WH/BK | 0.5 | SN | X115-B | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | VT/WH | 0.35 | SN | X966M-12 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 11 | YE/WH | 0.5 | SN | X255-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 12 | YE | 0.5 | SN | X041-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 13 | RD/BK | 0.35 | SN | X777-5 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | GN | 0.75 | SN | X535-4 | SUMITOMO 8240-0213 | | 1099539-00-A | |
| 16 | BU/WH | 0.35 | SN | X261-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | GY | 0.35 | SN | X964M-11 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 22 | VT | 0.35 | SN | X966M-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 23 | BN | 0.35 | SN | X965M-12 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 24 | RD/GY | 0.35 | SN | X563-34 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 25 | RD/BK | 0.35 | SN | X563-4 | SUMITOMO 8100-3625 | | 1099530-00-A | |
