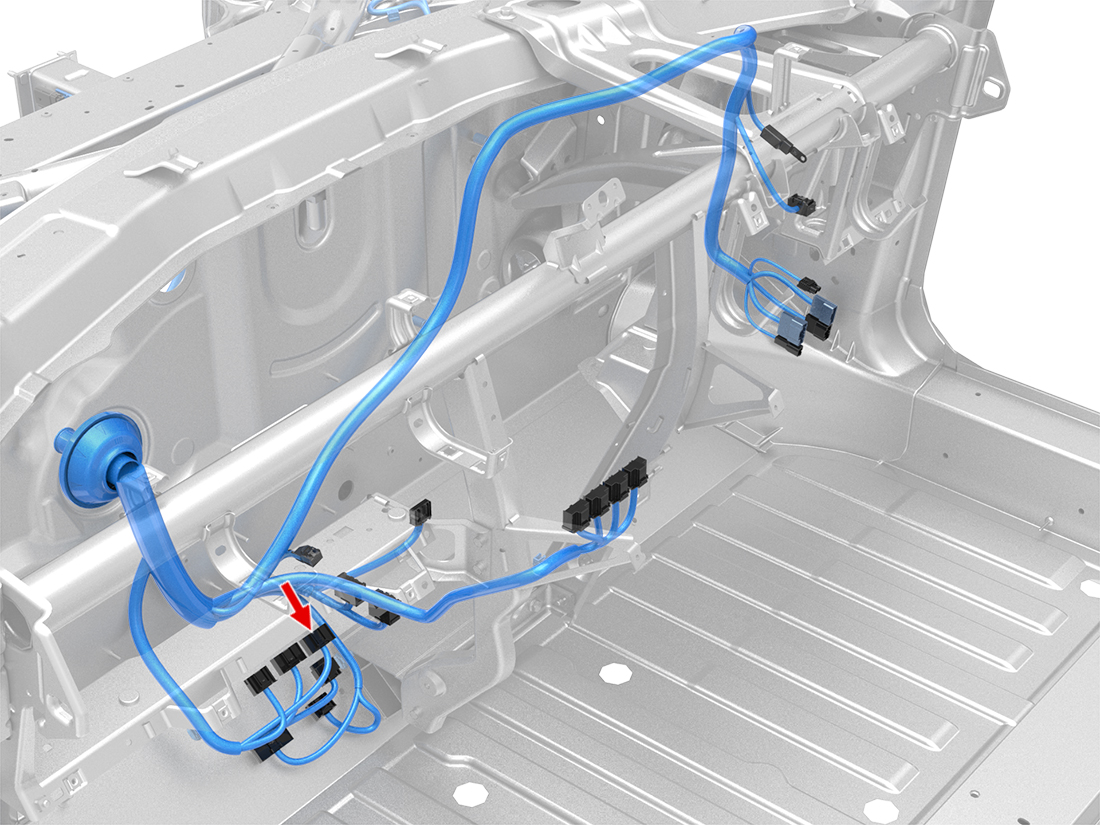

Connector Detail: YAZAKI 7287-1918-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | RD/YE | 0.35 | SN | X966M-7 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | RD | 0.5 | SN | X965M-5 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | RD/GN | 0.5 | SN | X965M-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | RD/BK | 0.5 | SN | X563-39 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | SI | 0.35 | SN | Z90-SEC03-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | RD/GY | 0.35 | SN | X051-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | GN | 0.5 | SN | X237-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 11 | YE/WH | 0.5 | SN | Z3-+CPV01-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 12 | RD/VT | 0.35 | SN | X966M-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 13 | WH/BK | 0.35 | SN | X966M-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | RD/GN | 0.35 | SN | X966M-19 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 15 | GY/WH | 0.35 | SN | X966M-20 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 16 | WH | 0.35 | SN | X051-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | BK/VT | 0.35 | SN | X966M-18 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 18 | VT/WH | 0.5 | SN | X965M-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 19 | BN/WH | 0.5 | SN | X965M-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | RD | 0.35 | SN | X480-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 21 | BK | 0.35 | SN | X480-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 22 | VT | 0.5 | SN | X237-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 23 | YE | 0.5 | SN | Z4-+CPV02-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 25 | VT | 0.35 | SN | X966M-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 26 | RD/WH | 1.5 | SN | X563-2 | SUMITOMO 8240-0214 | | 1099540-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | RD/YE | 0.35 | SN | X966M-7 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 4 | RD | 0.5 | SN | X965M-5 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 5 | RD/GN | 0.5 | SN | X965M-13 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 6 | RD/BK | 0.5 | SN | X563-39 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 7 | SI | 0.35 | SN | Z90-SEC03-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 8 | RD/GY | 0.35 | SN | X051-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 10 | GN | 0.5 | SN | X237-2 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 11 | YE/WH | 0.5 | SN | Z3-+CPV01-R | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 12 | RD/VT | 0.35 | SN | X966M-9 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 13 | WH/BK | 0.35 | SN | X966M-10 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 14 | RD/GN | 0.35 | SN | X966M-19 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 15 | GY/WH | 0.35 | SN | X966M-20 | SUMITOMO 8240-0215 | | 1099541-00-A | |
| 16 | WH | 0.35 | SN | X051-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 17 | BK/VT | 0.35 | SN | X966M-18 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 18 | VT/WH | 0.5 | SN | X965M-6 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 19 | BN/WH | 0.5 | SN | X965M-14 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 20 | RD | 0.35 | SN | X480-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 21 | BK | 0.35 | SN | X480-3 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 22 | VT | 0.5 | SN | X237-1 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 23 | YE | 0.5 | SN | Z4-+CPV02-L | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 25 | VT | 0.35 | SN | X966M-16 | SUMITOMO 8100-3625 | | 1099530-00-A | |
| 26 | RD/WH | 1.5 | SN | X563-2 | SUMITOMO 8240-0214 | | 1099540-00-A | |
